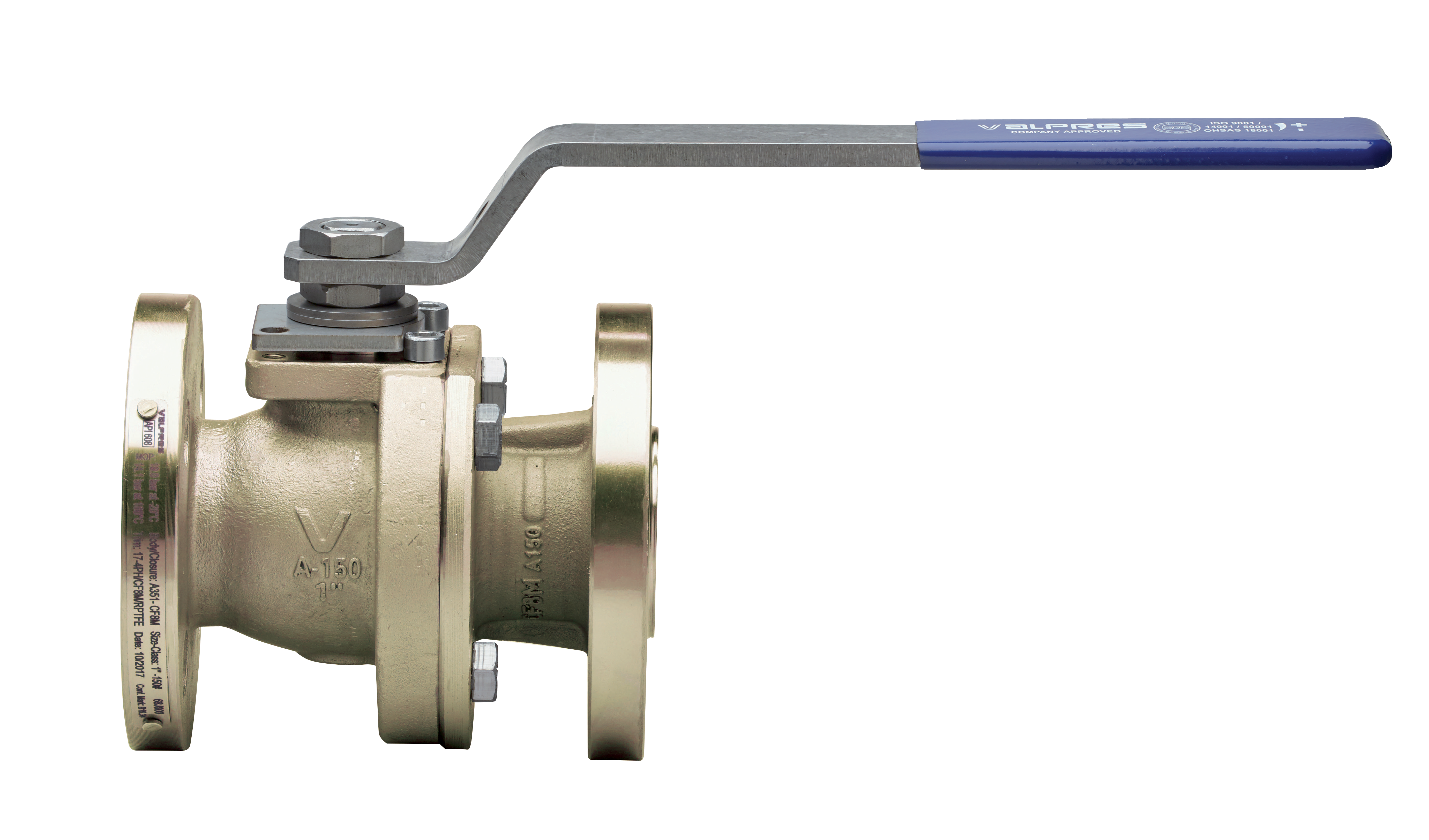

| POSITION | PART NAME | MATERIAL | N.° PIECES |
|---|---|---|---|
| 1 | BODY | A352-LCC | 1 |
| 2 | END CONNECTION | A352-LCC | 1 |
| 3 | BALL | A479-TP316 | 1 |
| 4 | STEM | A564-TP630 H115OD (17-4-PH) | 1 |
| 5 | SCREW | A320 L7 | 4-6-8 |
| 6 | NUT | CARBON STEEL | 2 |
| 7 | SPRING WASHER | CARBON STEEL | 2 |
| 8 | 90° STOP | AISI 316 | 1 |
| 9 | BUSH | A479-TP316L | 1 |
| 10 | O-RING | FKM (VITON) | 1 |
| 11 | HANDLE | CARBON STEEL | 1 |
| 12 | STEM SEAL | GRAFITE | 1 |
| 13 | O-RING | FKM (VITON) | 1 |
| 14 | THRUST WASHER | RPTFE | 1 |
| 15 | O-RING BUSH | A479-TP316L | 1 |
| 16 | BODY SEAT | GRAFITE | 1 |
| 17 | O-RING | FKM (VITON) | 1 |
| 18 | BALL SEAT | RPTFE | 2 |
| 19 | SCREW | CARBON STEEL | 2 |
| CODE | SIZE | DN | D | Y | Z | H | I | L | G | P | R | A | C | T | E | F | ØN | B | KV | PN | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 68F000-1 | 1” | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 68F000-1-1/2 | 1 1/2” | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 68F000-1/2 | 1/2” | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 68F000-2 | 2” | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 68F000-3 | 3” | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 68F000-3/4 | 3/4” | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 68F000-4 | 4” | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 68F000-6 | 6” | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 68F00004 | 1/2" | 15 | 90 | 60.3 | 4 | 11.6 | 45.5 | 108 | 82 | 95 | 174 | 54 | 21.5 | 6.8 | M12 | 8 | 42 | M5 | 19.2 | 20 | 2.4 |
| 68F00005 | 3/4" | 20 | 100 | 69.9 | 4 | 13.5 | 48.5 | 117 | 90 | 99 | 174 | 58 | 21 | 6.8 | M12 | 8 | 42 | M5 | 35 | 20 | 3.3 |
| 68F00006 | 1" | 25 | 110 | 79.4 | 4 | 14.7 | 53 | 127 | 105 | 100 | 250 | 74.7 | 29 | 9.5 | M16 | 10 | 50 | M6 | 64.5 | 20 | 4.81 |
| 68F00008 | 1"1/2 | 40 | 125 | 98.4 | 4 | 18 | 94.5 | 165 | 123 | 123 | 321 | 100 | 35.5 | 15.5 | M20 | 14 | 50 | M6 | 174 | 20 | 8.7 |
| 68F00010 | 2" | 50 | 150 | 120.5 | 4 | 19.5 | 76 | 178 | 140 | 133 | 321 | 108.5 | 36.5 | 16.5 | M20 | 14 | 50 | M6 | 301.3 | 20 | 11.9 |
| 68F00014 | 3" | 80 | 190 | 152.4 | 4 | 24.3 | 82 | 203 | 188 | 167 | 381 | 149.5 | 44.5 | 20.5 | M24 | 18 | 70 | M8 | 872.5 | 20 | 24.1 |
| 68F00061 | 3"x2" | 80x50 | 210 | 168.3 | 8 | 29 | 138 | 282 | 140 | 133 | 321 | 109 | 36.5 | 16.5 | M20 | 14 | 50 | M6 | 146 | 50 | 22.1 |
| 68F00018 | 4" | 100 | 230 | 190.5 | 8 | 24.3 | 90 | 229 | 235 | 186 | 381 | 167 | 42.5 | 18.5 | M24 | 18 | 102 | M10 | 1363.3 | 20 | 38.5 |
| 68F00064 | 4"x3" | 100x80 | 255 | 200 | 8 | 32.2 | 135 | 305 | 188 | 167 | 381 | 150 | 44.5 | 20 | M24 | 18 | 102 | M10 | 418 | 50 | 41.6 |
| 68F00020 | 6" | 150 | 280 | 241.3 | 8 | 26 | 241 | 394 | 315 | - | - | 245 | 68 | 41 | M42 | 30 | 125 | M12 | 3671.1 | 20 | 85.8 |
| 68F00074 | 6"x4" | 150x100 | 320 | 269.9 | 12 | 37 | 196 | 403 | 235 | 186 | 610 | 167 | 42 | 18.5 | M24 | 18 | 102 | M10 | 754 | 50 | 74.6 |
Temperature range: -20° +180°
Vacuum: 10-3 torr.
Gear operator included
Locking device available
Low temperature design -45°C ON REQUEST
