WAFER-SPLIT BALL VALVES
/
WAFER-SPLIT ANSI 600
/
763100
WAFER-SPLIT ANSI 600

763100

STAINLESS STEEL

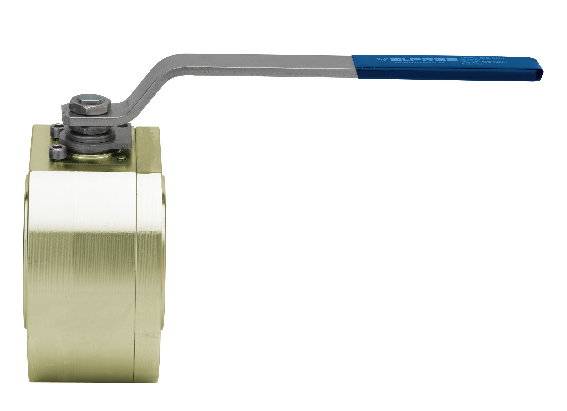

Full bore Wafer-Split flanged ball valve ANSI 600 with Antistatic Device and Fire safe certificate, face to face according to UNI EN 558 basic series 101,metric thread stainless steel A479-Tp316.

Technical specifications

Temperature range: -20° +160°

Vacuum: 10-3 torr.

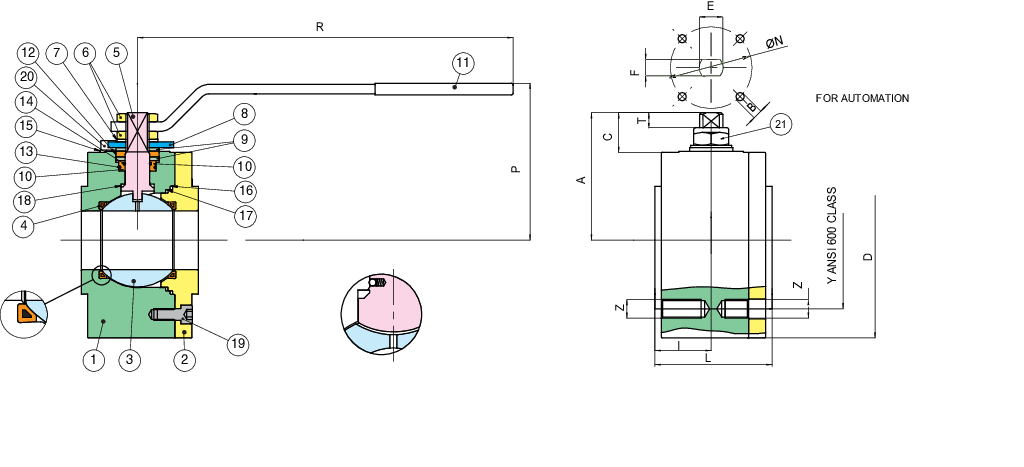

Position Part name Material N.° pieces
1 BODY A479-TP316 1
2 END CONNECTION A479-TP316 1
3 BALL A351-CF8M/A479-TP316 1
4 BALL SEAT PTFE+MET/R PTFE 2
5 STEM A479-TP316/17-4-PH 1
6 NUT STAINLESS STEEL 2
7 SPRING WASHER STAINLESS STEEL 2
8 90° STOP STAINLESS STEEL 1
9 BUSH A182-F316 2
10 STEM SEAT PTFE 1
11 HANDLE STAINLESS STEEL 1
12 STEM SEAT GRAPHOIL 1
13 O-RING FKM 1
14 O-RING FKM 1
15 WASHER A182-F304 2
16 BODY SEAT GRAPHOIL 1
17 BODY SEAT PTFE 1
18 THRUST WASHER PTFE 1
19 SCREW STAINLESS STEEL 3-4-7
20 SCREW STAINLESS STEEL 2
21 NUT STAINLESS STEEL 1
SIZE DN CODE D Y Z I L R P A C T E F ØN B Kv PN Kg
1/2" 15 76310004 95 66,7 4XM14 23,5 55 131 71 52,5 17,5 7,5 M10 7 42-F04 M5 19,2 100 2,40
3/4" 20 76310005 115 82,6 4XM16 24 60 174 88 67,5 22,6 10,1 M12 8 42-F04 M5 35 100 3,80
1" 25 76310006 125 88,9 4XM16 26,5 65 174 92 72,5 23,5 9,5 M12 8 42-F04 M5 64,5 100 4,80
1"1/2 40 76310008 155 114,3 4XM20 38 85 251 131 107 32 11 M16 10 50-F05 M6 174 100 11,20
2" 50 76310010 165 127 8XM16 48 100 321 134 109 34 13 M20 14 70-F07 M8 301,3 100 14,00
3" 80 76310014 210 168,3 8XM20 75 150 381 155 132 39,5 16 M24 18 70-F07 M8 872,5 100 32,00
4" 100 76310018 275 215,9 8XM24 92,5 185 381 185 165 43,5 19 M24 18 102-F10 M10 1363,3 100 70,00

ANSI 300 drilling same as ANSI 600 up to DN 80.

Certifications
SIL 3
TUV
FIRE-SAFE Acc. EN ISO 10497/API 607
Available media and videos
CAT242000 VALPRES
CAT242000 VALPRES
Spare Parts
SEATS
Code Material Size
RI2347 PTFE CARBOGRAFITE - CARBON FILLED PTFE 15
RI2348 PTFE CARBOGRAFITE - CARBON FILLED PTFE 20
RI2349 PTFE CARBOGRAFITE - CARBON FILLED PTFE 25
RI2350 PTFE CARBOGRAFITE - CARBON FILLED PTFE 32
RI2351 PTFE CARBOGRAFITE - CARBON FILLED PTFE 40
RI2352 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
RI2648 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
SPLIT WAFER
RI2353 PTFE CARBOGRAFITE - CARBON FILLED PTFE 65
RI2354 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80
RI2355 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
DIN
RI2356 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
ANSI
RI2357 PTFE CARBOGRAFITE - CARBON FILLED PTFE 125
RI2358 PTFE CARBOGRAFITE - CARBON FILLED PTFE 150
RI2359 PTFE CARBOGRAFITE - CARBON FILLED PTFE 200
RI2373 PTFE CON ANIMA METALLICA - METAL CORE PTFE 15
RI2374 PTFE CON ANIMA METALLICA - METAL CORE PTFE 20
RI2375 PTFE CON ANIMA METALLICA - METAL CORE PTFE 25
RI2376 PTFE CON ANIMA METALLICA - METAL CORE PTFE 32
RI2377 PTFE CON ANIMA METALLICA - METAL CORE PTFE 40
RI2378 PTFE CON ANIMA METALLICA - METAL CORE PTFE 50
RI2649 PTFE CON ANIMA METALLICA - METAL CORE PTFE 50
SPLIT WAFER
RI2379 PTFE CON ANIMA METALLICA - METAL CORE PTFE 65
RI2380 PTFE CON ANIMA METALLICA - METAL CORE PTFE 80
RI2381 PTFE CON ANIMA METALLICA - METAL CORE PTFE 100
DIN
RI2382 PTFE CON ANIMA METALLICA - METAL CORE PTFE 100
ANSI
RI2383 PTFE CON ANIMA METALLICA - METAL CORE PTFE 125
RI2384 PTFE CON ANIMA METALLICA - METAL CORE PTFE 150
RI2385 PTFE CON ANIMA METALLICA - METAL CORE PTFE 200
RI6161 PTFE 100 Din
RI6161 PTFE 100 Ansi
RI6163 PTFE CARICATO VETRO - GLASS FILLED PTFE 100 Din
RI6163 PTFE CARICATO VETRO - GLASS FILLED PTFE 100 Ansi
RI6162 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100 Din
RI6162 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100 Ansi
RI2373 PTFE CON ANIMA METALLICA - METAL CORE PTFE 15
RI2650 PTFE CON ANIMA METALLICA - METAL CORE PTFE 20
RI2375 PTFE CON ANIMA METALLICA - METAL CORE PTFE 25
RI2651 PTFE CON ANIMA METALLICA - METAL CORE PTFE 32
RI2377 PTFE CON ANIMA METALLICA - METAL CORE PTFE 40
RI2378 PTFE CON ANIMA METALLICA - METAL CORE PTFE 50
RI2379 PTFE CON ANIMA METALLICA - METAL CORE PTFE 65
RI2380 PTFE CON ANIMA METALLICA - METAL CORE PTFE 80
RI2381 PTFE CON ANIMA METALLICA - METAL CORE PTFE 100
BALL
Code Material Size
00318007001 AISI 316 100DIN
00318007001 AISI 316 100ANSI
00318007002 AISI 304 100DIN
00318007002 AISI 304 100ANSI
00321000026 AISI 304 200
00377000008 AISI 304 250
00378000008 AISI 304 300
00321000025 AISI 316 200
00377000007 AISI 316 250
00378000007 AISI 316 300
00304000037 AISI 316 15
00305000031 AISI 316 20
00306000031 AISI 316 25
00307000031 AISI 316 32
00308000026 AISI 316 40
00310000080 AISI 316 50
00312000009 AISI 316 65
00314000013 AISI 316 80
00318007006 AISI 316 100
STEMS ANTISTATIC DEVICE
Code Material Size
00404000033 AISI 316 15
00405000046 AISI 316 20
00406000020 AISI 316 25
00410000024 AISI 316 50
00414000003 AISI 316 80
00414000002 AISI 316 100
STEMS
Code Material Size
00408000022 AISI 316 40
HANDLES
Code Material Size
RI2180 AISI 316 15
RI2180 AISI 316 20
RI2181 AISI 316 25
RI2181 AISI 316 32
RI2182 AISI 316 40
RI2182 AISI 316 50
RI2183 AISI 316 65
RI2184 AISI 316 80
RI2184 AISI 316 100
