WAFER BALL VALVES
/
WAFER PN63
/
720700
WAFER PN63

720700

STAINLESS STEEL

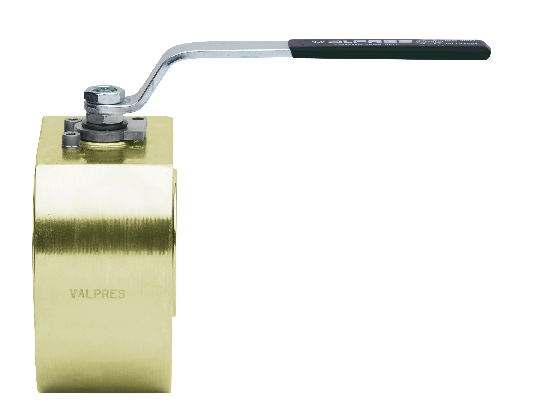

Full bore flanged ball valve PN63 with Antistatic Device, metric thread stainless steel A479 316/316L.

Technical specifications

Temperature range: -20° +160°

Vacuum: 10-3 torr.

Position Part name Material N.° pieces
1 BODY A182-F316/F316L 1
2 END CONNECTION A182-F316/F316L 1
3 BALL A351-CF8M/A479-TP316 1
4 BALL SEAT PTFE+FIBERGLASS 2
5 STEM A479-TP316/17-4-PH 1
6 NUT STAINLESS STEEL 2
7 SPRING WASHER STAINLESS STEEL 2
8 90° STOP STAINLESS STEEL 1
9 PACKING GLAND A182-F316 1
10 STEM SEAT PTFE 1
11 HANDLE CARBON STEEL 1
12 STEM SEAT GRAPHOIL 1
13 O-RING FKM 1
14 O-RING FKM 1
15 THRUST WASHER STAINLESS STEEL 2
16 O-RING FKM 1
17 BODY SEAT PTFE 1
18 THRUST WASHER PTFE 1
19 SCREW STAINLESS STEEL 2
SIZE DN CODE D Y Z I L R P A C T E F ØN B Kv PN Kg
1/2" 15 72070004 105 75 4xM12 26 55 131 71 52,5 17,5 7,5 M10 7 42 M5 19,2 63 3,00
3/4" 20 72070005 130 90 4xM16 29 60 174 88 67,5 23,1 9,1 M12 8 42 M5 35 63 5,00
1" 25 72070006 140 100 4xM16 26,5 65 174 92 72,5 24 10 M12 8 42 M5 64,5 63 6,20
1"1/4 32 72070007 155 110 4xM20 38 75 251 110 87 32,5 12,5 M16 10 50 M6 103,8 63 9,20
1"1/2 40 72070008 170 125 4xM20 42,5 85 251 118 93 30 10,5 M16 10 50 M6 174 63 12,80
2" 50 72070010 180 135 4xM20 50 100 321 133 109 36 15 M20 14 70 M8 301,3 63 16,80
2"1/2 65 72070012 205 160 8xM20 62,5 125 321 156 133 37,5 16,4 M20 14 70 M8 545,7 63 27,80
3" 80 72070014 215 170 8xM24 75 150 381 155 132 39 17 M24 18 70 M8 872,5 63 35,30
4" 100 72070018 255 200 8xM24 88 152 381 185 165 44 19,5 M24 18 102 M10 1363,3 63 59,00
Certifications
ATEX
TUV SIL 3
Available media and videos
CAT242000 VALPRES
CAT242000 VALPRES
Spare Parts
HANDLES
Code Material Size
RI2018 A 37 15
RI2018 A 37 20
RI2019 A 37 25
RI2019 A 37 32
RI2020 A 37 40
RI2020 A 37 50
RI2016 A 37 65
RI2016 A 37 80
RI2017 A 37 100
RI2017 A 37 125
RI2021 A 37 150
RI2021 A 37 200
RI2180 AISI 316 15
RI2180 AISI 316 20
RI2181 AISI 316 25
RI2181 AISI 316 32
RI2182 AISI 316 40
RI2182 AISI 316 50
RI2183 AISI 316 65
RI2183 AISI 316 80
RI2184 AISI 316 100
RI2184 AISI 316 125
RI2185 AISI 316 150
RI2185 AISI 316 200
SEATS
Code Material Size
RI2441 PTFE 150
RI2442 PTFE 200
RI2455 PTFE VETRO - GLASS FILLED PTFE 150
RI2456 PTFE VETRO - GLASS FILLED PTFE 200
RI2061 PTFE CARBOGRAFITE - CARBON FILLED PTFE 15
RI2062 PTFE CARBOGRAFITE - CARBON FILLED PTFE 20
RI2063 PTFE CARBOGRAFITE - CARBON FILLED PTFE 25
RI2064 PTFE CARBOGRAFITE - CARBON FILLED PTFE 32
RI2131 PTFE CARBOGRAFITE - CARBON FILLED PTFE 40
RI2127 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
RI2123 PTFE CARBOGRAFITE - CARBON FILLED PTFE 65
RI2141 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80
RI2146 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
RI2070 PTFE CARBOGRAFITE - CARBON FILLED PTFE 125
RI2072 PTFE CARBOGRAFITE - CARBON FILLED PTFE 200
RI2452 PTFE CARBOGRAFITE CARBON FILLED PTFE 150
RI2453 PTFE CARBOGRAFITE CARBON FILLED PTFE 200
RI2625 PTFE VETRO - GLASS FILLED PTFE 15
RI2626 PTFE VETRO - GLASS FILLED PTFE 20
RI2627 PTFE VETRO - GLASS FILLED PTFE 25
RI2628 PTFE VETRO - GLASS FILLED PTFE 32
RI2629 PTFE VETRO - GLASS FILLED PTFE 40
RI2630 PTFE VETRO - GLASS FILLED PTFE 50
RI2631 PTFE VETRO - GLASS FILLED PTFE 65
RI2632 PTFE VETRO - GLASS FILLED PTFE 80
RI2633 PTFE VETRO - GLASS FILLED PTFE 100
CAVITY FILLED SEATS
Code Material Size
RI2095 PTFE 10
RI2095 PTFE 15
RI2096 PTFE 20
RI2097 PTFE 25
RI2098 PTFE 32
RI2132 PTFE 40
RI2128 PTFE 50
RI2124 PTFE 65
RI2142 PTFE 80
RI2147 PTFE 100
RI2509 PTFE 65
RI2510 PTFE 100
BALL
Code Material Size
00304000037 AISI 316 15
00305000031 AISI 316 20
00306000031 AISI 316 25
00307000031 AISI 316 32
00308000026 AISI 316 40
00310000080 AISI 316 50
00312000009 AISI 316 65
00314000013 AISI 316 80
00318007006 AISI 316 100
STEMS ANTISTATIC DEVICE
Code Material Size
00404000033 AISI 316 15
00405000046 AISI 316 20
00406000020 AISI 316 25
00407000027 AISI 316 32
00408000023 AISI 316 40
00410000024 AISI 316 50
00412000014 AISI 316 65
00414000003 AISI 316 80
00414000002 AISI 316 100
Back to the catalogue

Related products / Accesories

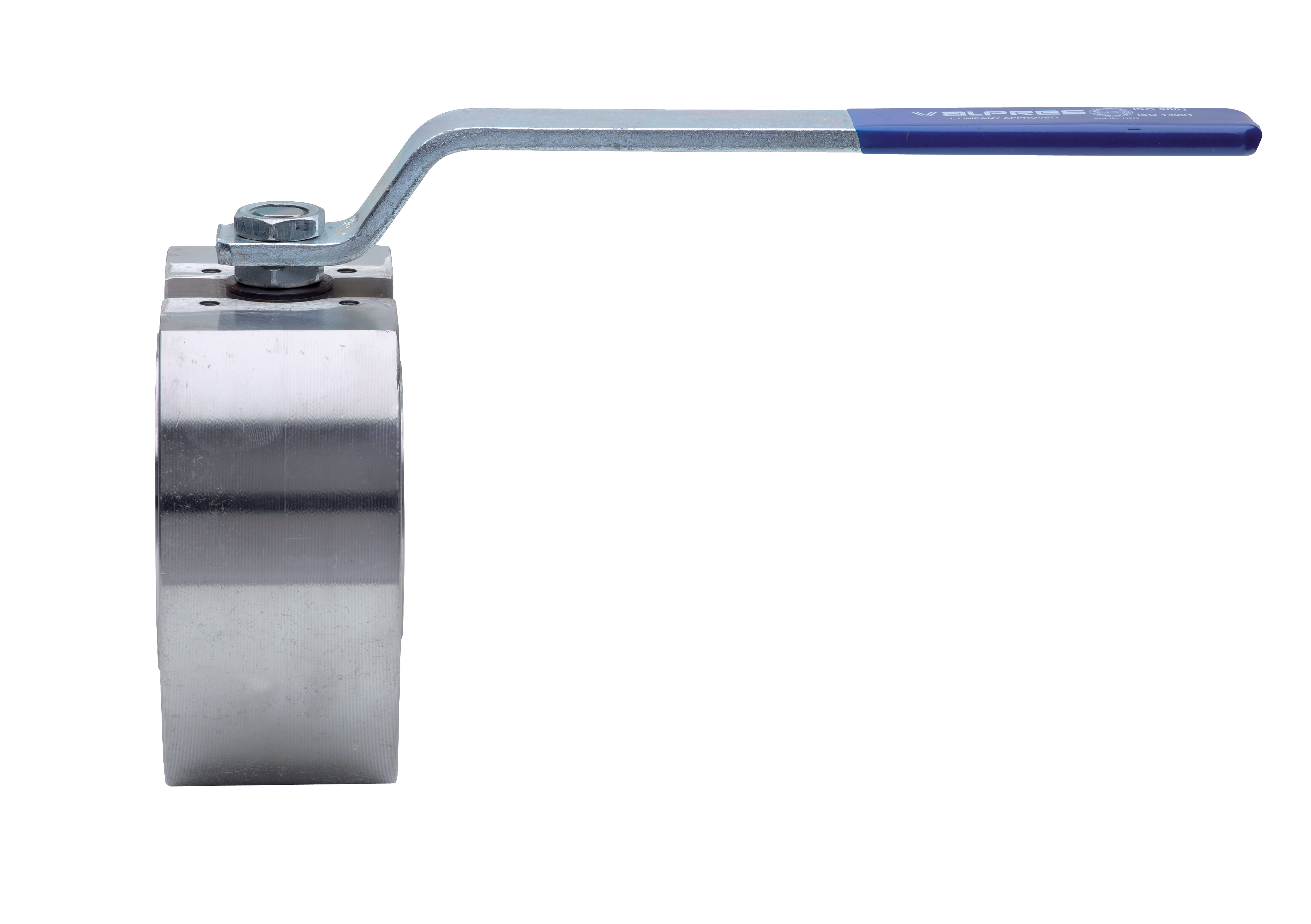

720650
