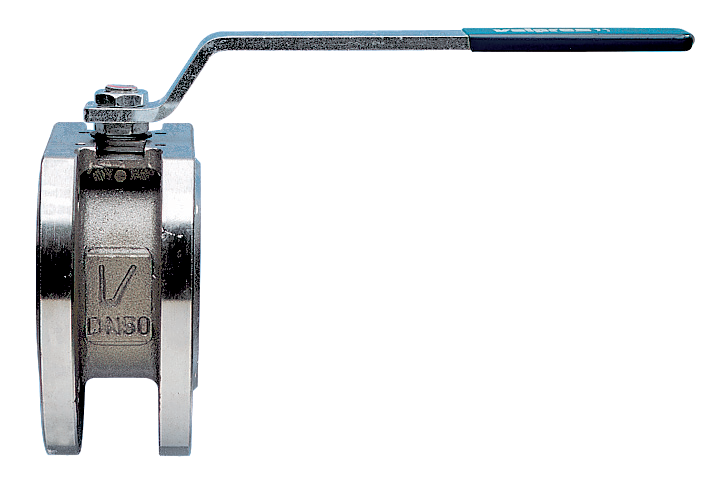

Technical specifications

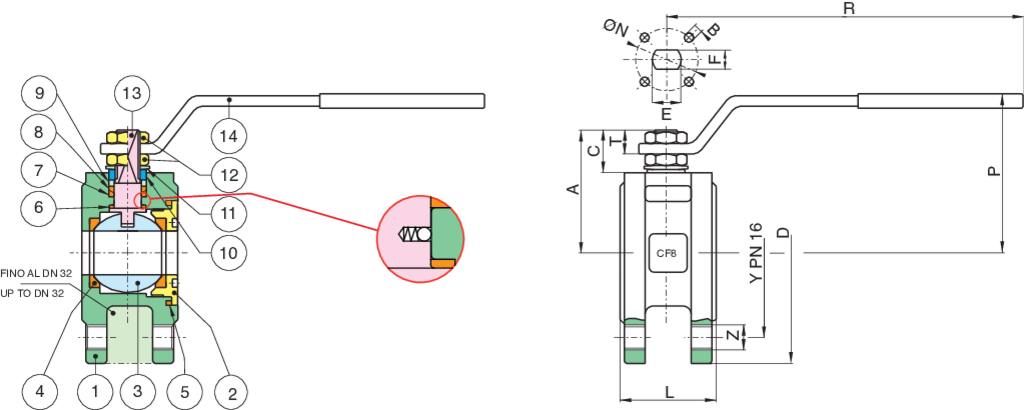

Drawing
Materials
POSITION PART NAME MATERIAL N.° PIECES
1 BODY A351-CF8/A182-F304 1
2 END CONNECTION A351-CF8/A182-F304 1
3 BALL A351-CF8/A479-TP304 1
4 BALL SEAT PTFE 2
5 BODY SEAT PTFE 1
6 THRUST WASHER PTFE 1
7 STEM SEAT PTFE 1
8 STEM SEAT PTFE 1
9 PACKING GLAND CARBON STEEL 1
10 END STOP INOX AISI 430 (DN15-DN50) CARBON STEEL (DN65-DN80) 2
11 SPRING WASHER CARBON STEEL 2
12 NUT CARBON STEEL 1
13 STEM A479-TP316/316L 1
14 HANDLE CARBON STEEL 1
Table
SIZE DN CODE UNITS PER BOX D Y Z L R P A C T E F ØN B KV PN KG
1/2” 15 72075004 - 90 65 4 35 131 65 47 15.5 9 10 7 32 4 19.2 16 1.3
3/4” 20 72075005 - 100 75 4 40 131 69 51.5 15.5 9 10 7 32 4 35 16 1.9
1” 25 72075006 - 115 85 4 46 174 80 61 17 11 12 8 42 4 64.5 16 2.2
1”1/4 32 72075007 - 140 100 4 54 174 84 64.5 15 11 12 8 42 4 103.8 16 3.3
1”1/2 40 72075008 - 150 110 4 63.5 250 102 78 24.5 13 16 10 50 4 174 16 4.2
2” 50 72075010 - 165 125 4 82 250 111 87 25 13 16 10 50 4 301.3 16 6.1
2”1/2 65 72075012 - 185 145 4 103 321 128 104.5 25 18 20 14 70 4 545.7 16 10
3” 80 72075014 - 200 160 8 122 321 138 115 28.5 18 20 14 70 4 872.5 16 13.5
Notes
Available spare parts pagg

Temperature range: -20° +160°
Certifications
ATEX
SIL 3
