Technical specifications

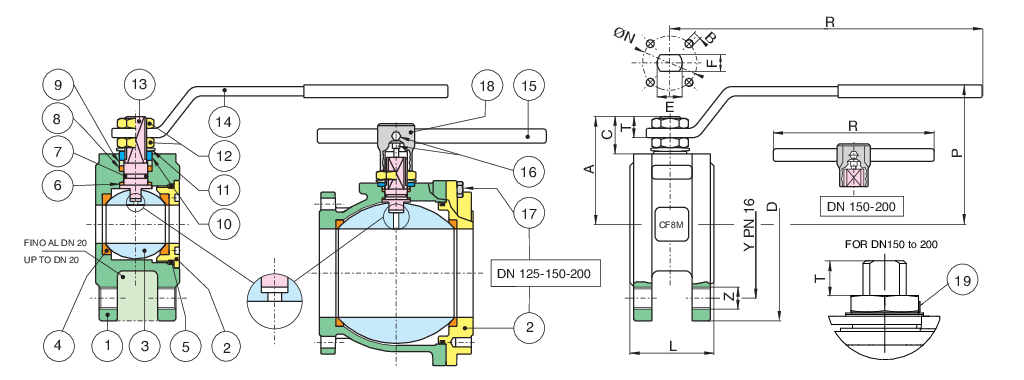

Drawing
Materials
POSITION PART NAME MATERIAL N.° PIECES
1 BODY A351-CF8M/A182-F316 1
2 END CONNECTION A351-CF8M/A182-F316 1
3 BALL A351-CF8M/A479-TP316 1
4 BALL SEAT PTFE 2
5 O-RING FKM (VITON) 1
6 THRUST WASHER PTFE 1
7 O-RING FKM (VITON) 1
8 STEM SEAT PTFE 1
9 PACKING GLAND CARBON STEEL 1
10 END STOP INOX AISI 430 (DN15-DN50) CARBON STEEL (DN65-DN150) 2-1
11 SPRING WASHER CARBON STEEL 2
12 NUT CARBON STEEL 2
13 STEM A479-TP316 1
14 HANDLE CARBON STEEL 1
15 HANDLE DN 150--200 CARBON STEEL 1
16 SCREW CARBON STEEL 2
17 SCREW CARBON STEEL 8-12
18 BODY HANDLE DN150-200 EN-GJL 250 1
19 Unscrewing grower A182-F316 1
Table
SIZE DN CODE UNITS PER BOX D Y Z L R P A C T E F ØN B KV PN KG
1/2” 15 72000504 - 90 65 4 35 131 65 47 15.5 9 10 7 32 4 19.2 16 1.4
3/4” 20 72000505 - 100 75 4 40 131 69 51.5 15.5 9 10 7 32 4 35 16 1.9
1” 25 72000506 - 115 85 4 46 174 80 61 17 11 12 8 42 4 64.5 16 2.2
1”1/4 32 72000507 - 140 100 4 54 174 84 64.5 15 11 12 8 42 4 103.8 16 3.3
1”1/2 40 72000508 - 150 110 4 63.5 250 102 78 24.5 13 16 10 50 4 174 16 4.2
2” 50 72000510 - 165 125 4 82 250 111 87 25 13 16 10 50 4 301.3 16 6.1
2”1/2 65 72000512 - 185 145 4 103 321 128 104.5 25 18 20 14 70 4 545.7 16 10
3” 80 72000514 - 200 160 8 122 321 138 115 28.5 18 20 14 70 4 872.5 16 13.5
4” 100 72000518 - 220 180 8 152 381 156 137 34.5 22 24 18 102 4 1363.3 16 20.9
5” 125 72000519 - 250 210 8 196 381 178 159 34 22 24 18 102 4 2360.3 16 40.5
6” 150 72000520 - 285 240 8 232 700 266 201.5 51.5 30 42 30 125 4 3671.1 16 66.2
8” 200 72000521 - 340 295 12 400 700 332 288 68 41 42 30 125 4 6816.6 16 104
Notes

Temperature range: -20° +160°

Vacuum: 10-3 torr.

Low temperature design -40°C ON REQUEST

Certifications
ADR BS 14432
F.E. TESTED ISO15848-1
T.A. LUFT
SIL 3
ATEX (On request)
