WAFER BALL VALVES
/
WAFER PN16 FOR STEAM
/
720301
WAFER PN16 FOR STEAM

720301

STAINLESS STEEL

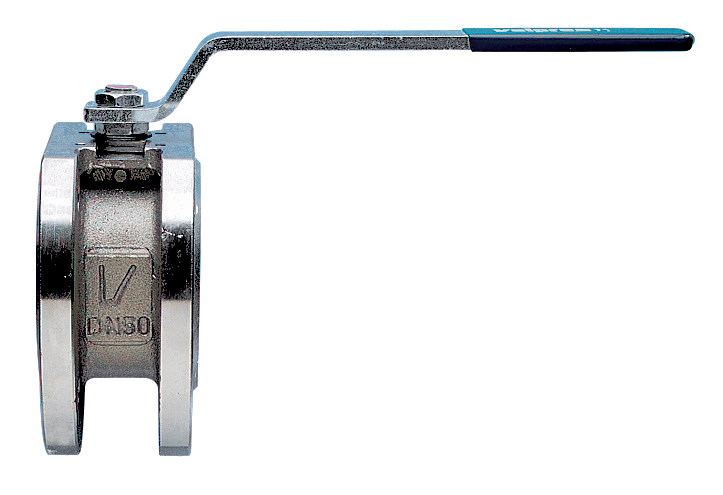

Full bore flanged ball valve PN16 with Antistatic Device and Fire Safe certificate, metric thread stainless steel A351-CF8M. Suitable for steam.

FOR STEAM

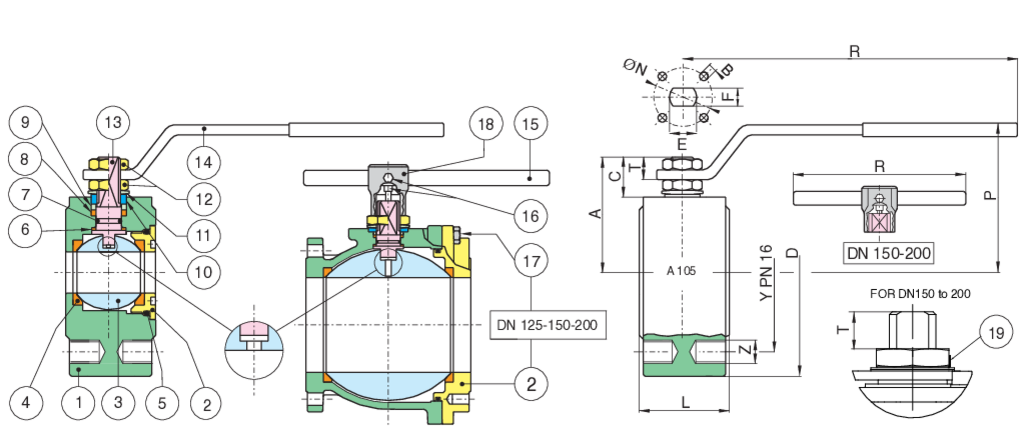

Technical specifications
Position Part name Material N.° pieces
1 BODY A351-CF8M/A479-TP316 1
2 END CONNECTION A351-CF8M/A479-TP316 1
3 BALL A351-CF8M/A479-TP316 1
4 BALL SEAT PTFE+CARBOGRAFITE 2
5 O-RING FKM 1
6 THRUST WASHER PTFE+CARBOGRAFITE 1
7 O-RING FKM 1
8 STEM SEAT PTFE+CARBOGRAFITE 1
9 PACKING GLAND CARBON STEEL 1
10 END STOP INOX AISI 430 (DN15-DN50) CARBON STEEL (DN65-DN100) 2-1
11 SPRING WASHER CARBON STEEL 2
12 NUT CARBON STEEL 2
13 STEM A479-TP316/17-4-PH 1
14 HANDLE CARBON STEEL 1
15 HANDLE DN 150 CARBON STEEL 1
16 SCREW CARBON STEEL 2
17 SCREW CARBON STEEL 8-12
18 BODY HANDLE DN150-200 EN-GJL 250 1
19 Unscrewing grower A182-F316 1
SIZE DN CODE D Y Z L R P A C T E F ØN B Kv PN Kg
1/2" 15 72030104 90 65 4xM12 35 131 65 47 15,5 9 10 7 32 4xM5 19,2 16 1,30
3/4" 20 72030105 100 75 4xM12 40 131 69 51,5 15,5 9 10 7 32 4xM5 35 16 1,90
1" 25 72030106 115 85 4xM12 46 174 80 61 17 11 12 8 42 4xM5 64,5 16 2,20
1"1/4 32 72030107 140 100 4xM16 54 174 84 64,5 15 11 12 8 42 4xM5 103,8 16 3,30
1"1/2 40 72030108 150 110 4xM16 63,5 250 102 78 24,5 13 16 10 50 4xM6 174 16 4,20
2" 50 72030110 165 125 4xM16 82 250 111 87 25 13 16 10 50 4xM6 301,3 16 6,10
2"1/2 65 72030112 185 145 4xM16 103 321 128 104,5 25 18 20 14 70 4xM8 545,7 16 10,00
3" 80 72030114 200 160 8xM16 122 321 138 115 28,5 18 20 14 70 4xM8 872,5 16 13,50
4" 100 72030118 220 180 8xM16 152 381 156 137 34,5 22 24 18 102 4xM8 1363,3 16 20,90
5" 125 72030119 250 210 8xM16 196 381 178 159 34 22 24 18 102 4xM10 2360,3 16 37,50
6" 150 72030120 285 240 8xM20 232 700 266 201,5 51,5 30 42 30 125 4xM12 3671,1 16 61,50
Certifications
F.E. TESTED ISO15848-1
TUV SIL 3
FIRESAFE ATEX BS6755-2
Available media and videos
CAT242000 VALPRES
CAT242000 VALPRES
Spare Parts
HANDLES
Code Material Size
RI2018 A 37 15
RI2018 A 37 20
RI2019 A 37 25
RI2019 A 37 32
RI2020 A 37 40
RI2020 A 37 50
RI2016 A 37 65
RI2016 A 37 80
RI2017 A 37 100
RI2017 A 37 125
RI2021 A 37 150
RI2021 A 37 200
RI2180 AISI 316 15
RI2180 AISI 316 20
RI2181 AISI 316 25
RI2181 AISI 316 32
RI2182 AISI 316 40
RI2182 AISI 316 50
RI2183 AISI 316 65
RI2183 AISI 316 80
RI2184 AISI 316 100
RI2184 AISI 316 125
RI2185 AISI 316 150
RI2185 AISI 316 200
SEATS
Code Material Size
RI2441 PTFE 150
RI2442 PTFE 200
RI2455 PTFE VETRO - GLASS FILLED PTFE 150
RI2456 PTFE VETRO - GLASS FILLED PTFE 200
RI2061 PTFE CARBOGRAFITE - CARBON FILLED PTFE 15
RI2062 PTFE CARBOGRAFITE - CARBON FILLED PTFE 20
RI2063 PTFE CARBOGRAFITE - CARBON FILLED PTFE 25
RI2064 PTFE CARBOGRAFITE - CARBON FILLED PTFE 32
RI2131 PTFE CARBOGRAFITE - CARBON FILLED PTFE 40
RI2127 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
RI2123 PTFE CARBOGRAFITE - CARBON FILLED PTFE 65
RI2141 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80
RI2146 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
RI2070 PTFE CARBOGRAFITE - CARBON FILLED PTFE 125
RI2072 PTFE CARBOGRAFITE - CARBON FILLED PTFE 200
RI2452 PTFE CARBOGRAFITE CARBON FILLED PTFE 150
RI2453 PTFE CARBOGRAFITE CARBON FILLED PTFE 200
RI2397 PTFE CON ANIMA METALLICA - METAL CORE PTFE 15
RI2435 PTFE CON ANIMA METALLICA - METAL CORE PTFE 20
RI2460 PTFE CON ANIMA METALLICA - METAL CORE PTFE 25
RI2436 PTFE CON ANIMA METALLICA - METAL CORE PTFE 32
RI2437 PTFE CON ANIMA METALLICA - METAL CORE PTFE 40
RI2461 PTFE CON ANIMA METALLICA - METAL CORE PTFE 50
RI2462 PTFE CON ANIMA METALLICA - METAL CORE PTFE 65
RI2463 PTFE CON ANIMA METALLICA - METAL CORE PTFE 80
RI2464 PTFE CON ANIMA METALLICA - METAL CORE PTFE 100
CAVITY FILLED SEATS
Code Material Size
RI2095 PTFE 10
RI2095 PTFE 15
RI2096 PTFE 20
RI2097 PTFE 25
RI2098 PTFE 32
RI2132 PTFE 40
RI2128 PTFE 50
RI2124 PTFE 65
RI2142 PTFE 80
RI2147 PTFE 100
RI2509 PTFE 65
RI2510 PTFE 100
BALL
Code Material Size
00304000037 AISI 316 15
00305000031 AISI 316 20
00306000031 AISI 316 25
00307000028 AISI 316 32
00308000026 AISI 316 40
00310000080 AISI 316 50
00312000009 AISI 316 65
00314000013 AISI 316 80
00318007006 AISI 316 100
STEMS
Code Material Size
00405000029 AISI 316 15
00405000029 AISI 316 20
00406000011 AISI 316 25
00406000011 AISI 316 32
00408000010 AISI 316 40
00408000010 AISI 316 50
00412000021 AISI 316 65
00412000021 AISI 316 80
00420000001 AISI 316 150
00420000001 AISI 316 200
STEMS ANTISTATIC DEVICE
Code Material Size
00418000006 AISI 316 100
00418000006 AISI 316 125
