WAFER PN16-40 V-PACK

722V00

Full bore flanged ball valve PN16/40 blued carbon steel A105/LF2, EN 558 basic series 100, metric thread, V-Pack stem seal, Fire safe, Antistatic Device.

Technical specifications

Temperature range: -20° +180°

Vacuum: 10-2 torr.

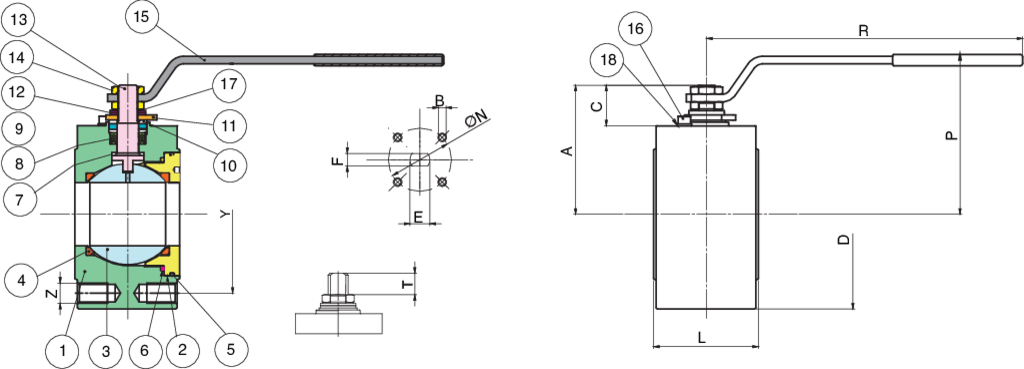

Position	Part name	Material	N.° pieces
1	BODY	ASTM-A105/LF2	1
2	END CONNECTION	ASTM-A105/LF2	1
3	BALL	A351-CF8M/A479-TP316	1
4	BALL SEAT	TFM-MPTFE	2
5	O-RING	FKM	1
6	BODY SEAT	PTFE	1
7	ANTIFRICTION RING	TFM-MPTFE	1
8	V-PACK	PTFE	1
9	STEM SEAT	GRAPHOIL	1
10	PACKING GLAND	A479-TP316	2
11	END STOP	A37 ENP CS	1
12	SPRING WASHER	AISI 50CRV4	2
13	STEM	A479-TP316/17-4-PH	1
14	NUT	6S ENP CS	2
15	HANDLE	A37 ENP CS	1
16	SCREW	A2-70	2
17	Unscrewing grower	AISI 316	1
18	THRUST WASHER	AISI 304	2

SIZE	DN	CODE	D	Y	Z	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	722V0004	90	65	4xM12	36	131	70	52	18	8	10	7	32	4xM5	19,2	16	1,50
3/4"	20	722V0005	100	75	4xM12	39	131	75	56	17,5	7,5	10	7	32	4xM5	35	16	1,95
1"	25	722V0006	110	85	4xM12	44	174	93	72,5	26	10,5	12	8	42	4xM5	64,5	16	2,80
1"1/4	32	722V0007	130	100	4xM16	52	174	97	75,5	25	9,5	12	8	42	4xM5	103,8	16	4,45
1"1/2	40	722V0008	140	110	4xM16	64	250	118	93	31	13	16	10	50	4xM6	174	16	6,86
2"	50	722V0010	150	125	4xM16	83	250	127	102	32	13	16	10	50	4xM6	301,3	16	9,86
2"1/2	65	722V0012	180	145	4xM16	105	321	143	121	38,5	19	20	14	70	4xM8	545,7	40	17,00
2"1/2*	65	722V0812	180	145	8xM16	105	321	143	121	38,5	19	20	14	70	4xM8	545,7	40	17,00
3"	80	722V0014	190	160	8xM16	121	321	154	132	43,5	20	24	18	70	4xM8	872,5	16	22,30
4"	100	722V0018	220	190	8xM16	152	381	168	146	42	19	24	18	102	4xM10	1363,3	40	34,40
4"*	100	722V0818	220	190	8xM20	152	381	168	146	42	19	24	18	102	4xM10	1363,3	40	34,40

* Art. 722V08 (PN40)

Certifications

SIL 3

FIRE-SAFE ISO10497

F.E. TESTED ISO15848-1

Available media and videos

CAT242000 VALPRES

Spare Parts

HANDLES

Code	Material	Size
RI2180	AISI 316	15
RI2180	AISI 316	20
RI2181	AISI 316	25
RI2181	AISI 316	32
RI2182	AISI 316	40
RI2182	AISI 316	50
RI2183	AISI 316	65
RI2183	AISI 316	80
RI2184	AISI 316	100
RI2184	AISI 316	125
RI2185	AISI 316	150
RI2185	AISI 316	200
RI6947	A 37	15
RI6947	A 37	20
RI6948	A 37	25
RI6948	A 37	32
RI6949	A 37	40
RI6949	A 37	50
RI6950	A 37	65
RI6951	A 37	80
RI6951	A 37	100

SEATS

Code	Material	Size
RI2441	PTFE	150
RI2442	PTFE	200
RI2455	PTFE VETRO - GLASS FILLED PTFE	150
RI2456	PTFE VETRO - GLASS FILLED PTFE	200
RI2061	PTFE CARBOGRAFITE - CARBON FILLED PTFE	15
RI2062	PTFE CARBOGRAFITE - CARBON FILLED PTFE	20
RI2063	PTFE CARBOGRAFITE - CARBON FILLED PTFE	25
RI2064	PTFE CARBOGRAFITE - CARBON FILLED PTFE	32
RI2131	PTFE CARBOGRAFITE - CARBON FILLED PTFE	40
RI2127	PTFE CARBOGRAFITE - CARBON FILLED PTFE	50
RI2123	PTFE CARBOGRAFITE - CARBON FILLED PTFE	65
RI2141	PTFE CARBOGRAFITE - CARBON FILLED PTFE	80
RI2146	PTFE CARBOGRAFITE - CARBON FILLED PTFE	100
RI2070	PTFE CARBOGRAFITE - CARBON FILLED PTFE	125
RI2072	PTFE CARBOGRAFITE - CARBON FILLED PTFE	200
RI2452	PTFE CARBOGRAFITE CARBON FILLED PTFE	150
RI2453	PTFE CARBOGRAFITE CARBON FILLED PTFE	200

CAVITY FILLED SEATS

Code	Material	Size
RI2095	PTFE	10
RI2095	PTFE	15
RI2096	PTFE	20
RI2097	PTFE	25
RI2098	PTFE	32
RI2132	PTFE	40
RI2128	PTFE	50
RI2124	PTFE	65
RI2142	PTFE	80
RI2147	PTFE	100
RI2509	PTFE	65
RI2510	PTFE	100

BALL

Code	Material	Size
00304000046	AISI 304	15
00305000075	AISI 304	20
00306000038	AISI 304	25
00307000054	AISI 304	32
00308000029	AISI 304	40
00310000028	AISI 304	50
00312000013	AISI 304	65
00314000016	AISI 304	80
00318007004	AISI 304	100

STEMS ANTISTATIC DEVICE

Code	Material	Size
00404000033	AISI 316	15
00404000033	AISI 316	20
00406000034	AISI 316	25
00406000034	AISI 316	32
00408000023	AISI 316	40
00408000023	AISI 316	50
00412000015	AISI 316	65
00414000024	AISI 316	80
00414000024	AISI 316	100
