WAFER PN16-40 V-PACK

721V00

Full bore flanged ball valve PN16/40 stainless steel A351- CF8M, EN 558 basic series 100, metric thread, V-Pack stem seal, Fire Safe, Antistatic Device.

Technical specifications

Temperature range: -40° +180°

Vacuum: 10^-2 torr.

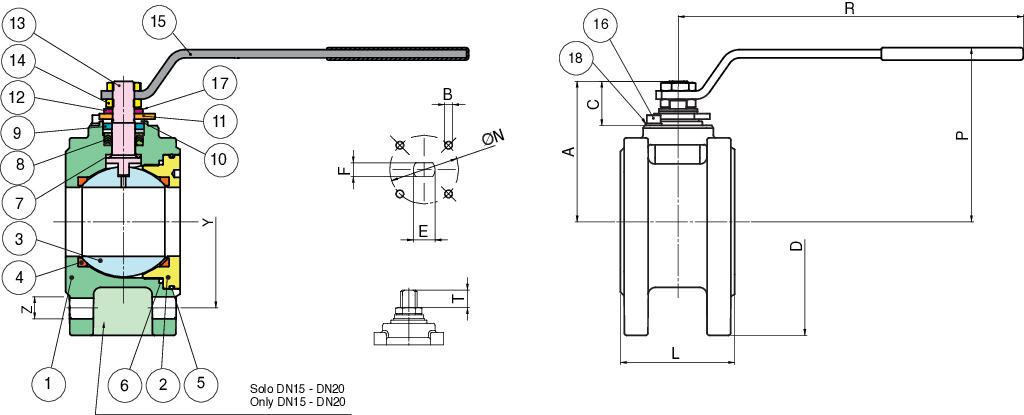

Position	Part name	Material	N.° pieces
1	BODY	A351-CF8M/A479-TP316	1
2	END CONNECTION	A351-CF8M/A479-TP316	1
3	BALL	A351-CF8M/A479-TP316	1
4	BALL SEAT	TFM-MPTFE	2
5	O-RING	FKM	1
6	BODY SEAT	PTFE	1
7	ANTIFRICTION RING	TFM-MPTFE	1
8	V-PACK	PTFE	1
9	STEM SEAT	GRAPHOIL	1
10	PACKING GLAND	A479-TP316	2
11	END STOP	AISI 316	1
12	SPRING WASHER	AISI 304	2
13	STEM	AA479-TP316/17-4-PH	1
14	NUT	A2-70	2
15	HANDLE	A37 ENP CS	1
16	SCREW	A2-70	2
17	Unscrewing grower	AISI 316	1
18	THRUST WASHER	AISI 316	2

SIZE	DN	CODE	D	Y	Z	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	721V0004	95	65	4xM12	36	131	70	52	18	8	10	7	32	4xM5	19,2	16	1,64
3/4"	20	721V0005	105	75	4xM12	39	131	75	56	17,5	7,5	10	7	32	4xM5	35	16	2,15
1"	25	721V0006	115	85	4xM12	44	174	93	72,5	26	10,5	12	8	42	4xM5	64,5	16	2,56
1"1/4	32	721V0007	140	100	4xM16	52	174	97	75,5	25	9,5	12	8	42	4xM5	103,8	16	3,86
1"1/2	40	721V0008	150	110	4xM16	64	250	118	93	31	13	16	10	50	4xM6	174	16	5,35
2"	50	721V0010	165	125	4xM16	83	250	127	102	32	13	16	10	50	4xM6	301,3	16	7,50
2"1/2	65	721V0012	185	145	4xM16	105	321	143	121	38,5	19	20	14	70	4xM8	545,7	40	12,10
2"1/2**	65	721V7812	185	145	8xM16	105	321	143	121	38,5	19	20	14	70	4xM8	545,7	40	12,10
3"	80	721V0014	200	160	8xM16	121	321	154	132	43,5	19	24	18	70	4xM8	872,5	16	16,83
4"	100	721V0018	220	190	8xM16	152	381	168	146	42	19	24	18	102	4xM8	1363,3	40	24,00
4"**	100	721V0018	220	190	8xM20	152	381	168	146	42	19	24	18	102	4xM10	1363,3	40	24,00

** 721V78 /PN40)

Certifications

SIL 3

FIRE-SAFE ISO10497

F.E. TESTED ISO15848-1

Available media and videos

CAT242000 VALPRES

Spare Parts

HANDLES

Code	Material	Size
RI2180	AISI 316	15
RI2180	AISI 316	20
RI2181	AISI 316	25
RI2181	AISI 316	32
RI2182	AISI 316	40
RI2182	AISI 316	50
RI2183	AISI 316	65
RI2183	AISI 316	80
RI2184	AISI 316	100
RI2184	AISI 316	125
RI2185	AISI 316	150
RI2185	AISI 316	200
RI6947	A 37	15
RI6947	A 37	20
RI6948	A 37	25
RI6948	A 37	32
RI6949	A 37	40
RI6949	A 37	50
RI6950	A 37	65
RI6951	A 37	80
RI6951	A 37	100

SEATS

Code	Material	Size
RI2441	PTFE	150
RI2442	PTFE	200
RI2455	PTFE VETRO - GLASS FILLED PTFE	150
RI2456	PTFE VETRO - GLASS FILLED PTFE	200
RI2061	PTFE CARBOGRAFITE - CARBON FILLED PTFE	15
RI2062	PTFE CARBOGRAFITE - CARBON FILLED PTFE	20
RI2063	PTFE CARBOGRAFITE - CARBON FILLED PTFE	25
RI2064	PTFE CARBOGRAFITE - CARBON FILLED PTFE	32
RI2131	PTFE CARBOGRAFITE - CARBON FILLED PTFE	40
RI2127	PTFE CARBOGRAFITE - CARBON FILLED PTFE	50
RI2123	PTFE CARBOGRAFITE - CARBON FILLED PTFE	65
RI2141	PTFE CARBOGRAFITE - CARBON FILLED PTFE	80
RI2146	PTFE CARBOGRAFITE - CARBON FILLED PTFE	100
RI2070	PTFE CARBOGRAFITE - CARBON FILLED PTFE	125
RI2072	PTFE CARBOGRAFITE - CARBON FILLED PTFE	200
RI2452	PTFE CARBOGRAFITE CARBON FILLED PTFE	150
RI2453	PTFE CARBOGRAFITE CARBON FILLED PTFE	200

CAVITY FILLED SEATS

Code	Material	Size
RI2095	PTFE	10
RI2095	PTFE	15
RI2096	PTFE	20
RI2097	PTFE	25
RI2098	PTFE	32
RI2132	PTFE	40
RI2128	PTFE	50
RI2124	PTFE	65
RI2142	PTFE	80
RI2147	PTFE	100
RI2509	PTFE	65
RI2510	PTFE	100

BALL

Code	Material	Size
00304000037	AISI 316	15
00305000031	AISI 316	20
00306000031	AISI 316	25
00307000031	AISI 316	32
00308000026	AISI 316	40
00310000080	AISI 316	50
00312000009	AISI 316	65
00314000013	AISI 316	80
00318007006	AISI 316	100

STEMS ANTISTATIC DEVICE

Code	Material	Size
00404000033	AISI 316	15
00404000033	AISI 316	20
00406000034	AISI 316	25
00406000034	AISI 316	32
00408000023	AISI 316	40
00408000023	AISI 316	50
00412000015	AISI 316	65
00414000024	AISI 316	80
00414000024	AISI 316	100
