WAFER BALL VALVES
/
WAFER PN10-PN16 ANSI 150
/
725000
WAFER PN10-PN16 ANSI 150

725000

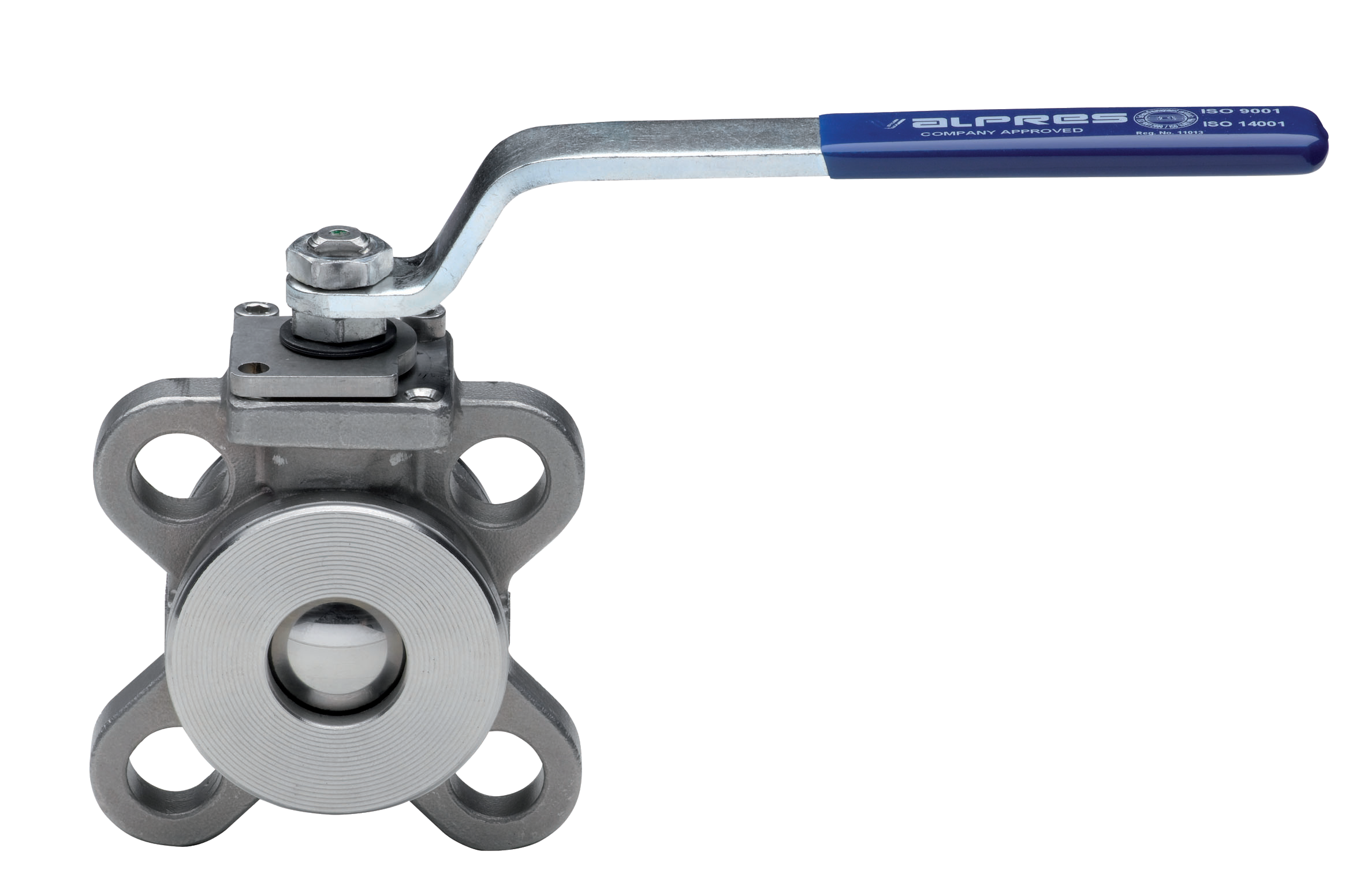

Full bore stainless steel A351-CF8M flanged ball valve, Wafer type, Antistatic Device.
Technical specifications

Temperature range: -20° +160°

Vacuum: 10-3 torr.

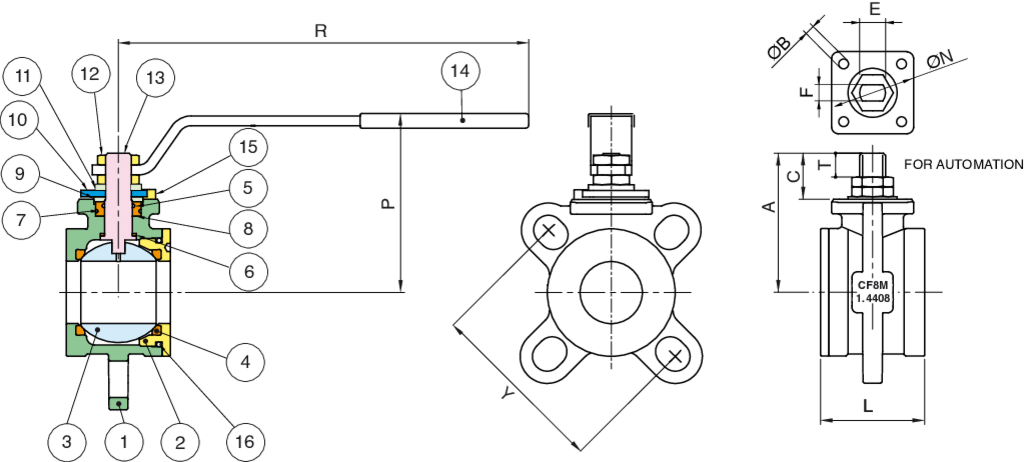

Position Part name Material N.° pieces
1 BODY A351-CF8M 1
2 END CONNECTION A182-F316 1
3 BALL A479-TP316/A351-CF8M 1
4 BALL SEAT PTFE 2
5 O-RING FKM 1
6 THRUST WASHER PTFE 1
7 RING FKM 1
8 STEM SEAT PTFE 1
9 PACKING GLAND A182-F316 1
10 END STOP CARBON STEEL 1
11 SPRING WASHER CARBON STEEL 2
12 NUT CARBON STEEL 2
13 STEM A479-TP316 1
14 HANDLE CARBON STEEL 1
15 SCREW CARBON STEEL 2
16 O-RING FKM 1
SIZE DN CODE Y L R P A C T E F ØN B Kv PN Kg
1" 25 72500006 PN10 - PN16 - PN40 - ANSI150 46 174 91 71,5 23 9 M12 8 42 M5 64,5 40 1,30
1"1/4 32 72500007 PN10 - PN16 - PN40 - ANSI150 54 174 95 75 23 9 M12 8 42 M5 103,8 40 1,65
1"1/2 40 72500008 PN10 - PN16 - PN40 - ANSI150 63,5 250 110 85 28 12,5 M16 10 50 M6 174 40 2,15
2" 50 72500010 PN10 - PN16 - PN40 - ANSI150 82 250 119 93,5 28 12,5 M16 10 50 M6 301,3 40 3,75
2"1/2 65 72500012 PN10 - PN16 - ANSI150 103 321 145 121,5 33,5 16 M20 14 70 M8 545,7 20 7,35
3" 80 72500014 PN10 - PN16 - ANSI150 122 321 154 131 33,5 16 M20 14 70 M8 872,5 20 10,30
4"* 100 72500018 PN10 - PN16 - ANSI150 152 321 167 144 33,5 16 M20 14 70 M8 1363,3 20 16,00

*V-Ball not available for size 4"

Certifications
TUV SIL 3
ATEX
Available media and videos
CAT242000 VALPRES
CAT242000 VALPRES
Spare Parts
HANDLES
Code Material Size
RI2018 A 37 15
RI2018 A 37 20
RI2019 A 37 25
RI2019 A 37 32
RI2020 A 37 40
RI2020 A 37 50
RI2016 A 37 65
RI2016 A 37 80
RI2017 A 37 100
RI2017 A 37 125
RI2021 A 37 150
RI2021 A 37 200
RI2180 AISI 316 15
RI2180 AISI 316 20
RI2181 AISI 316 25
RI2181 AISI 316 32
RI2182 AISI 316 40
RI2182 AISI 316 50
RI2183 AISI 316 65
RI2183 AISI 316 80
RI2184 AISI 316 100
RI2184 AISI 316 125
RI2185 AISI 316 150
RI2185 AISI 316 200
SEATS
Code Material Size
RI2441 PTFE 150
RI2442 PTFE 200
RI2455 PTFE VETRO - GLASS FILLED PTFE 150
RI2456 PTFE VETRO - GLASS FILLED PTFE 200
RI2061 PTFE CARBOGRAFITE - CARBON FILLED PTFE 15
RI2062 PTFE CARBOGRAFITE - CARBON FILLED PTFE 20
RI2063 PTFE CARBOGRAFITE - CARBON FILLED PTFE 25
RI2064 PTFE CARBOGRAFITE - CARBON FILLED PTFE 32
RI2131 PTFE CARBOGRAFITE - CARBON FILLED PTFE 40
RI2127 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
RI2123 PTFE CARBOGRAFITE - CARBON FILLED PTFE 65
RI2141 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80
RI2146 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
RI2070 PTFE CARBOGRAFITE - CARBON FILLED PTFE 125
RI2072 PTFE CARBOGRAFITE - CARBON FILLED PTFE 200
RI2452 PTFE CARBOGRAFITE CARBON FILLED PTFE 150
RI2453 PTFE CARBOGRAFITE CARBON FILLED PTFE 200
RI2618 PTFE 25
RI2619 PTFE 32
RI2620 PTFE 40
RI2621 PTFE 50
RI2622 PTFE 65
RI2623 PTFE 80
RI2624 PTFE 100
CAVITY FILLED SEATS
Code Material Size
RI2095 PTFE 10
RI2095 PTFE 15
RI2096 PTFE 20
RI2097 PTFE 25
RI2098 PTFE 32
RI2132 PTFE 40
RI2128 PTFE 50
RI2124 PTFE 65
RI2142 PTFE 80
RI2147 PTFE 100
RI2509 PTFE 65
RI2510 PTFE 100
BALL
Code Material Size
00306000031 AISI 316 25
00307000031 AISI 316 32
00308000026 AISI 316 40
00310000080 AISI 316 50
00312000009 AISI 316 65
00314000013 AISI 316 80
00318000023 AISI 316 100
STEMS ANTISTATIC DEVICE
Code Material Size
00406000034 AISI 316 25
00406000034 AISI 316 32
00408000034 AISI 316 40
00408000034 AISI 316 50
00412000034 AISI 316 65
00412000034 AISI 316 80
00412000034 AISI 316 100
