SPLIT-BODY PN40

760341

CARBON STEEL

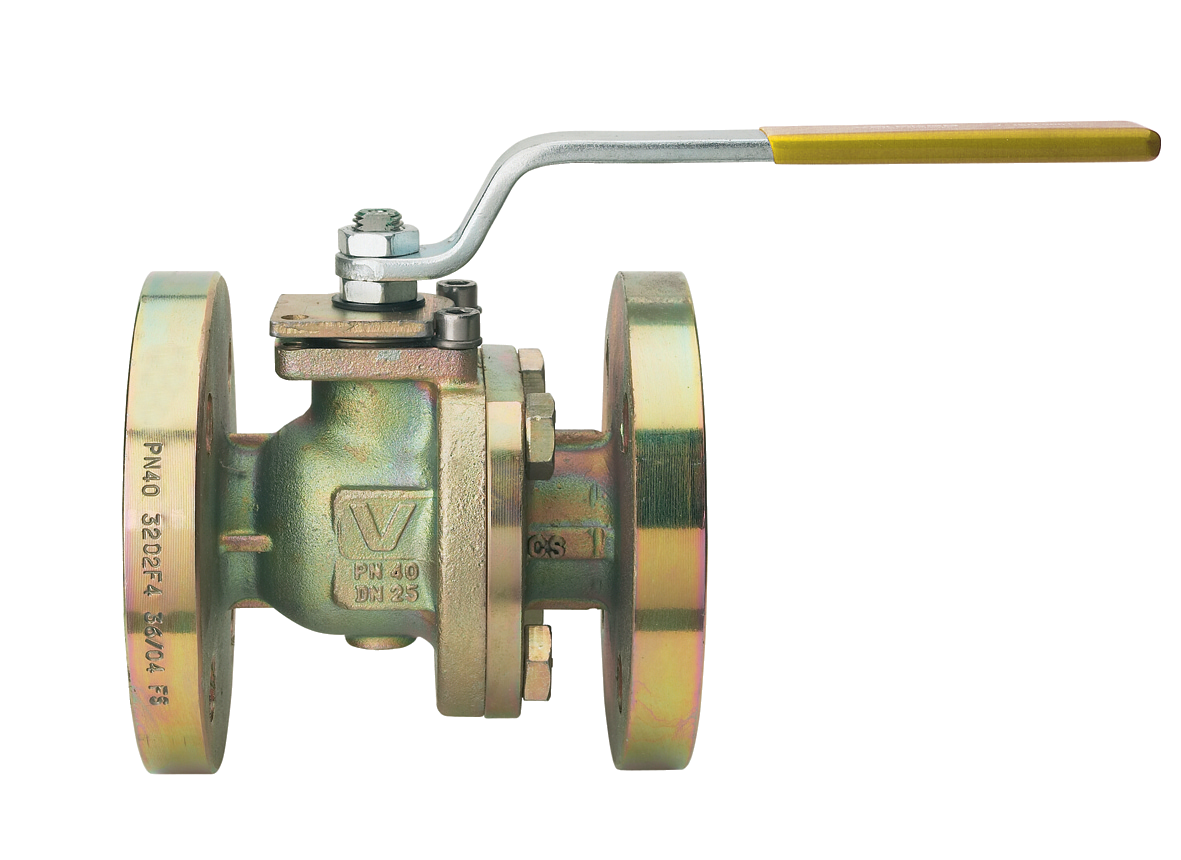

Flanged PN40 zinc-plated/painted (DN>100) carbon steel A352-LCB ball valve, full bore, EN 558 basic series 27, face to face dimension, Fire Safe, Antistatic Device.

Technical specifications

For standard temperature range is: -40 °C + 160°C
For DVGW GAS applications temperature range is: 0 °C + 50°C

Position	Part name	Material	N.° pieces
1	BODY	A352-LCB	1
2	END CONNECTION	A352-LCB	1
3	BALL	A479-TP304/A351-CF8	1
4	STEM	A479-TP304/17-4-PH	1
5	SCREW	CARBON STEEL	4-8-12
6	NUT	STAINLESS STEEL	1-2
7	SPRING WASHER	CARBON STEEL	2
8	90° STOP	CARBON STEEL	1
9	PACKING GLAND	A182-F316	2
10	STEM SEAT	PTFE	1
11	HANDLE	CARBON STEEL	1
12	STEM SEAL	GRAPHOIL	1
13	O-RING	HNBR	2
14	THRUST WASHER	PTFE	1
15	BODY SEAT	GRAPHOIL	1
16	BODY SEAT	PTFE	1
17	BALL SEAT	PTFE+FIBERGLASS	2
18	SCREW	CARBON STEEL	2
19	SCREW	CARBON STEEL	2
20	BODY HANDLE DN150-200	EN-GJL 250	1
21	Unscrewing grower	A182-F316	1

SIZE	DN	CODE	D	Y	Z	H	I	L	G	P	R	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76034104	95	65	4xØ14	16	49	115	71	88	131	52	19	8	M10	7	42-F04	M5	19,2	40	2,50
3/4"	20	76034105	105	75	4xØ14	18	51	120	73,5	93	131	56	19	8	M10	7	42-F04	M5	35	40	3,20
1"	25	76034106	115	85	4xØ14	18	54	125	90,5	89	174	72,5	27,5	13	M12	8	50-F05	M6	64,5	40	4,50
1"1/4	32	76034107	140	100	4xØ18	18	55	130	97	93	174	76	27,5	13	M12	8	50-F05	M6	103,8	40	5,80
1"1/2	40	76034108	150	110	4xØ18	18	51,5	140	114	133	250	107	30	10	M16	10	50-F05	M6	174	40	8,10
2"	50	76034110	165	125	4xØ18	20	57,5	150	136,5	144	321	122	38,5	18	M20	14	70-F07	M8	301,3	40	11,40
2"1/2	65	76034112	185	145	8xØ18	22	61	170	167,6	154	321	133	39,5	18	M20	14	70-F07	M8	545,7	40	15,30
3"	80	76034114	200	160	8xØ18	24	75,5	180	178,6	173	381	151	43	18	M24	18	102-F10	M10	872,5	40	21,60
4"	100	76034118	235	190	8xØ22	24	80	190	219	187	381	165	43	18	M24	18	102-F10	M10	1363,3	40	31,20
6"	150	76034120	300	250	8xØ25	28	163	350	306	305	700	245	68	41	M42	30	125-F12	M12	3671,1	40	82,70
8"	200	76034121	375	320	12xØ29	34	201	400	410	348	700	290	68	41	M42	30	125-F12	M12	6816,6	40	143,00

* TRUNNION ∆p=25 bar

Certifications

DVGW CERT EN 14141 tested

TUV SIL 3

FIRE-SAFE DESIGN

F.E. TESTED ISO15848-1

Available media and videos

CAT242000 VALPRES

Spare Parts

HANDLES

Code	Material	Size
RI2018	A 37	15
RI2018	A 37	20
RI2019	A 37	25
RI2019	A 37	32
RI2020	A 37	40
RI2016	A 37	50
RI2016	A 37	65
RI2017	A 37	80
RI2017	A 37	100
RI2017	A 37	125
RI2021	A 37	150
RI2021	A 37	200

SEATS

Code	Material	Size
RI2360	PTFE CARICATO VETRO - GLASS FILLED PTFE	15
RI2361	PTFE CARICATO VETRO - GLASS FILLED PTFE	20
RI2362	PTFE CARICATO VETRO - GLASS FILLED PTFE	25
RI2363	PTFE CARICATO VETRO - GLASS FILLED PTFE	32
RI2364	PTFE CARICATO VETRO - GLASS FILLED PTFE	40
RI2365	PTFE CARICATO VETRO - GLASS FILLED PTFE	50
RI2647	PTFE CARICATO VETRO - GLASS FILLED PTFE	50  SPLIT WAFER
RI2366	PTFE CARICATO VETRO - GLASS FILLED PTFE, PTFE VETRO - GLASS FILLED PTFE	65
RI2367	PTFE CARICATO VETRO - GLASS FILLED PTFE	80
RI2368	PTFE CARICATO VETRO - GLASS FILLED PTFE, PTFE VETRO - GLASS FILLED PTFE	100 DIN
RI2369	PTFE CARICATO VETRO - GLASS FILLED PTFE, PTFE VETRO - GLASS FILLED PTFE	100 ANSI
RI2370	PTFE CARICATO VETRO - GLASS FILLED PTFE	125
RI2371	PTFE CARICATO VETRO - GLASS FILLED PTFE	150
RI2543	PTFE CARICATO VETRO - GLASS FILLED PTFE	200
RI2347	PTFE CARBOGRAFITE - CARBON FILLED PTFE	15
RI2348	PTFE CARBOGRAFITE - CARBON FILLED PTFE	20
RI2349	PTFE CARBOGRAFITE - CARBON FILLED PTFE	25
RI2350	PTFE CARBOGRAFITE - CARBON FILLED PTFE	32
RI2351	PTFE CARBOGRAFITE - CARBON FILLED PTFE	40
RI2352	PTFE CARBOGRAFITE - CARBON FILLED PTFE	50
RI2648	PTFE CARBOGRAFITE - CARBON FILLED PTFE	50  SPLIT WAFER
RI2353	PTFE CARBOGRAFITE - CARBON FILLED PTFE	65
RI2354	PTFE CARBOGRAFITE - CARBON FILLED PTFE	80
RI2355	PTFE CARBOGRAFITE - CARBON FILLED PTFE	100 DIN
RI2356	PTFE CARBOGRAFITE - CARBON FILLED PTFE	100 ANSI
RI2357	PTFE CARBOGRAFITE - CARBON FILLED PTFE	125
RI2358	PTFE CARBOGRAFITE - CARBON FILLED PTFE	150
RI2359	PTFE CARBOGRAFITE - CARBON FILLED PTFE	200
RI2373	PTFE CON ANIMA METALLICA - METAL CORE PTFE	15
RI2374	PTFE CON ANIMA METALLICA - METAL CORE PTFE	20
RI2375	PTFE CON ANIMA METALLICA - METAL CORE PTFE	25
RI2376	PTFE CON ANIMA METALLICA - METAL CORE PTFE	32
RI2377	PTFE CON ANIMA METALLICA - METAL CORE PTFE	40
RI2378	PTFE CON ANIMA METALLICA - METAL CORE PTFE	50
RI2649	PTFE CON ANIMA METALLICA - METAL CORE PTFE	50  SPLIT WAFER
RI2379	PTFE CON ANIMA METALLICA - METAL CORE PTFE	65
RI2380	PTFE CON ANIMA METALLICA - METAL CORE PTFE	80
RI2381	PTFE CON ANIMA METALLICA - METAL CORE PTFE	100 DIN
RI2382	PTFE CON ANIMA METALLICA - METAL CORE PTFE	100 ANSI
RI2383	PTFE CON ANIMA METALLICA - METAL CORE PTFE	125
RI2384	PTFE CON ANIMA METALLICA - METAL CORE PTFE	150
RI2385	PTFE CON ANIMA METALLICA - METAL CORE PTFE	200
RI6161	PTFE	100 Din
RI6161	PTFE	100 Ansi
RI6163	PTFE CARICATO VETRO - GLASS FILLED PTFE	100 Din
RI6163	PTFE CARICATO VETRO - GLASS FILLED PTFE	100 Ansi
RI6162	PTFE CARBOGRAFITE - CARBON FILLED PTFE	100 Din
RI6162	PTFE CARBOGRAFITE - CARBON FILLED PTFE	100 Ansi

BALL

Code	Material	Size
00304000046	AISI 304	15
00305000075	AISI 304	20
00306000038	AISI 304	25
00307000054	AISI 304	32
00308000029	AISI 304	40
00310000028	AISI 304	50
00312000013	AISI 304	65
00314000016	AISI 304	80
00318007004	AISI 304	100DIN
00318007002	AISI 304	100ANSI
00319007006	AISI 304	125
00320007001	AISI 304	150
00321000028	AISI 304	200
00318007001	AISI 316	100DIN
00318007001	AISI 316	100ANSI
00318007002	AISI 304	100DIN
00318007002	AISI 304	100ANSI
00321000026	AISI 304	200
00377000008	AISI 304	250
00378000008	AISI 304	300
00321000025	AISI 316	200
00377000007	AISI 316	250
00378000007	AISI 316	300

STEMS ANTISTATIC DEVICE

Code	Material	Size
00404000033	AISI 316	15
00404000033	AISI 316	20
00406000020	AISI 316	25
00406000020	AISI 316	32
00412000014	AISI 316	65

STEMS

Code	Material	Size
00408000022	AISI 316	40
00410000023	AISI 316	50
00414000006	AISI 304	80
00414000006	AISI 304	100
00414000006	AISI 304	125
00420000008*	AISI 304	150
00420000008*	AISI 304	200
00477000005	17-4-PH	250
00477000005	17-4-PH	300
