SPLIT-BODY BALL VALVES
/
SPLIT-BODY PN16
/
765000
SPLIT-BODY PN16

765000

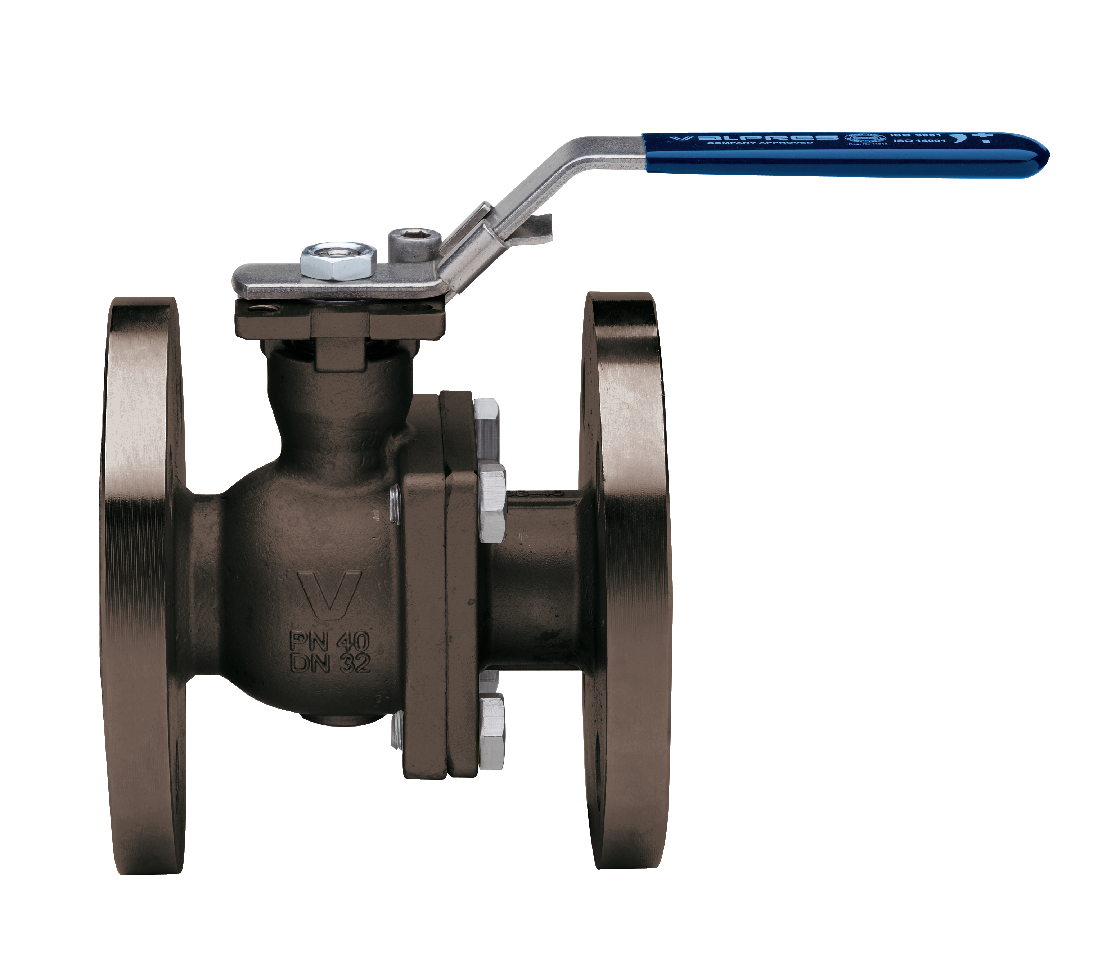

Flanged PN16 stainless steel AISI A351-CF8M ball valve, full bore, with ISO 5211 pad direct, EN 558 basic series 27 face to face dimension, Fire Safe, Antistaic Device.

Technical specifications

Temperature range: -20° +160°
Vacuum: 10-3 torr.

Position Part name Material N.° pieces
1 BODY A351-CF8M 1
2 END CONNECTION A351-CF8M 1
3 BALL A479-TP316/A351-CF8M 1
4 BALL SEAT PTFE 2
5 SCREW STAINLESS STEEL 4-8
6 BODY SEAT GRAPHOIL 1
7 BODY SEAT PTFE 1
8 STEM 17-4-PH 1
9 SCREW STAINLESS STEEL 1
10 NUT STAINLESS STEEL 1
11 NUT STAINLESS STEEL 1
12 SPRING WASHER STAINLESS STEEL 2
13 BUSH A182-F316 3
14 STEM SEAT GRAPHOIL 1
15 O-RING FKM 1
16 STEM SEAT PTFE 1
17 O-RING FKM 1
18 THRUST WASHER PTFE 1
19 HANDLE STAINLESS STEEL 1
SIZE DN CODE D Y Z H I L P R A C E ØN B ØN1 B1 Kv PN Kg
1/2" 15 76000004 - - - - - - - - - - - - - - - - - -
3/4" 20 76000005 - - - - - - - - - - - - - - - - - -
1" 25 76500006 115 85 4xØ14 18 53 125 94 161 69 11 9 50-F05 7 - - 64,5 40 3,70
1"1/4 32 76500007 140 100 4xØ18 18 55 130 108 161 82 11 9 50-F05 7 - - 103,8 40 5,00
1"1/2 40 76500008 150 110 4xØ18 18 52 140 119 241 94 14 11 70-F07 8,5 50-F05 M6 174 40 6,70
2" 50 76500010 165 125 4xØ18 18 57,5 150 128 241 103 13,5 11 70-F07 8,5 50-F05 M6 301,3 40 9,30
2"1/2 65 76500012 185 145 4xØ18 18 63 170 154 321 128,5 17,5 14 70-F07 8,5 - - 545,7 16 13,20
3" 80 76500014 200 160 8xØ18 20 75,5 180 163 321 137,5 17,5 14 102-F10 11 70-F07 M10 872,5 16 17,20
4" 100 76500018 220 180 8xØ18 20 80 190 177 380 153,5 19 17 102-F10 11 70-F07 M10 1363,3 16 23,40
Certifications
TUV SIL 3
FIRE-SAFE Acc. EN ISO 10497/API 607
Available media and videos
CAT242000 VALPRES
CAT242000 VALPRES
Spare Parts
HANDLES
Code Material Size
RI2955 AISI 316 25
RI2955 AISI 316 32
RI2956 AISI 316 40
RI2956 AISI 316 50
RI2957 AISI 316 65
RI2957 AISI 316 80
RI2958 AISI 316 100
SEATS
Code Material Size
RI2347 PTFE CARBOGRAFITE - CARBON FILLED PTFE 15
RI2348 PTFE CARBOGRAFITE - CARBON FILLED PTFE 20
RI2349 PTFE CARBOGRAFITE - CARBON FILLED PTFE 25
RI2350 PTFE CARBOGRAFITE - CARBON FILLED PTFE 32
RI2351 PTFE CARBOGRAFITE - CARBON FILLED PTFE 40
RI2352 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
RI2648 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
SPLIT WAFER
RI2353 PTFE CARBOGRAFITE - CARBON FILLED PTFE 65
RI2354 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80
RI2355 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
DIN
RI2356 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
ANSI
RI2357 PTFE CARBOGRAFITE - CARBON FILLED PTFE 125
RI2358 PTFE CARBOGRAFITE - CARBON FILLED PTFE 150
RI2359 PTFE CARBOGRAFITE - CARBON FILLED PTFE 200
RI2373 PTFE CON ANIMA METALLICA - METAL CORE PTFE 15
RI2374 PTFE CON ANIMA METALLICA - METAL CORE PTFE 20
RI2375 PTFE CON ANIMA METALLICA - METAL CORE PTFE 25
RI2376 PTFE CON ANIMA METALLICA - METAL CORE PTFE 32
RI2377 PTFE CON ANIMA METALLICA - METAL CORE PTFE 40
RI2378 PTFE CON ANIMA METALLICA - METAL CORE PTFE 50
RI2649 PTFE CON ANIMA METALLICA - METAL CORE PTFE 50
SPLIT WAFER
RI2379 PTFE CON ANIMA METALLICA - METAL CORE PTFE 65
RI2380 PTFE CON ANIMA METALLICA - METAL CORE PTFE 80
RI2381 PTFE CON ANIMA METALLICA - METAL CORE PTFE 100
DIN
RI2382 PTFE CON ANIMA METALLICA - METAL CORE PTFE 100
ANSI
RI2383 PTFE CON ANIMA METALLICA - METAL CORE PTFE 125
RI2384 PTFE CON ANIMA METALLICA - METAL CORE PTFE 150
RI2385 PTFE CON ANIMA METALLICA - METAL CORE PTFE 200
RI6161 PTFE 100 Din
RI6161 PTFE 100 Ansi
RI6163 PTFE CARICATO VETRO - GLASS FILLED PTFE 100 Din
RI6163 PTFE CARICATO VETRO - GLASS FILLED PTFE 100 Ansi
RI6162 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100 Din
RI6162 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100 Ansi
RI2892 PTFE 25
RI2893 PTFE 32
RI2894 PTFE 40
RI2895 PTFE 50
RI2328 PTFE 65
RI2897 PTFE 80
RI2330 PTFE 100 DIN
RI2346 PTFE 100 Ansi
RI6097 PTFE VETRO - GLASS FILLED PTFE 25
RI6099 PTFE VETRO - GLASS FILLED PTFE 32
RI6101 PTFE VETRO - GLASS FILLED PTFE 40
RI6103 PTFE VETRO - GLASS FILLED PTFE 50
RI2366 PTFE CARICATO VETRO - GLASS FILLED PTFE, PTFE VETRO - GLASS FILLED PTFE 65
RI6107 PTFE VETRO - GLASS FILLED PTFE 80
RI2368 PTFE CARICATO VETRO - GLASS FILLED PTFE, PTFE VETRO - GLASS FILLED PTFE 100 DIN
RI2369 PTFE CARICATO VETRO - GLASS FILLED PTFE, PTFE VETRO - GLASS FILLED PTFE 100 Ansi
RI6098 PTFE CARBOGRAFITE - CARBON FILLED PTFE 25
RI6100 PTFE CARBOGRAFITE - CARBON FILLED PTFE 32
RI6102 PTFE CARBOGRAFITE - CARBON FILLED PTFE 40
RI6104 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
RI2353 PTFE CARBOGRAFITE - CARBON FILLED PTFE 65
RI6108 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80
RI2355 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
DIN
RI2356 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
ANSI
BALL
Code Material Size
00304000037 AISI 316 15
00305000031 AISI 316 20
00306000031 AISI 316 25
00307000031 AISI 316 32
00308000026 AISI 316 40
00310000080 AISI 316 50
00312000009 AISI 316 65
00314000013 AISI 316 80
00318007006 AISI 316 100DIN
00318007001 AISI 316 100ANSI
00319007005 AISI 316 125
00320007002 AISI 316 150
00321000027 AISI 316 200
00318007001 AISI 316 100DIN
00318007001 AISI 316 100ANSI
00318007002 AISI 304 100DIN
00318007002 AISI 304 100ANSI
00321000026 AISI 304 200
00377000008 AISI 304 250
00378000008 AISI 304 300
00321000025 AISI 316 200
00377000007 AISI 316 250
00378000007 AISI 316 300
STEMS ANTISTATIC DEVICE
Code Material Size
00406000038 AISI 316 25
00407000026 AISI 316 32
00408000040 AISI 316 40
00408000040 AISI 316 50
00412000042 AISI 316, AISI 304 65
00412000042 AISI 316, AISI 304 80
00418000029 AISI 316 100
00406000052 17-4-PH 25
00407000039 17-4-PH 32
00408000054 17-4-PH 40
00408000054 17-4-PH 50
00412000056 17-4-PH 65
00412000056 17-4-PH 80
00418000043 17-4-PH 100
