SPLIT-BODY BALL VALVES
/
SPLIT-BODY PN16
/
760001
SPLIT-BODY PN16

760001

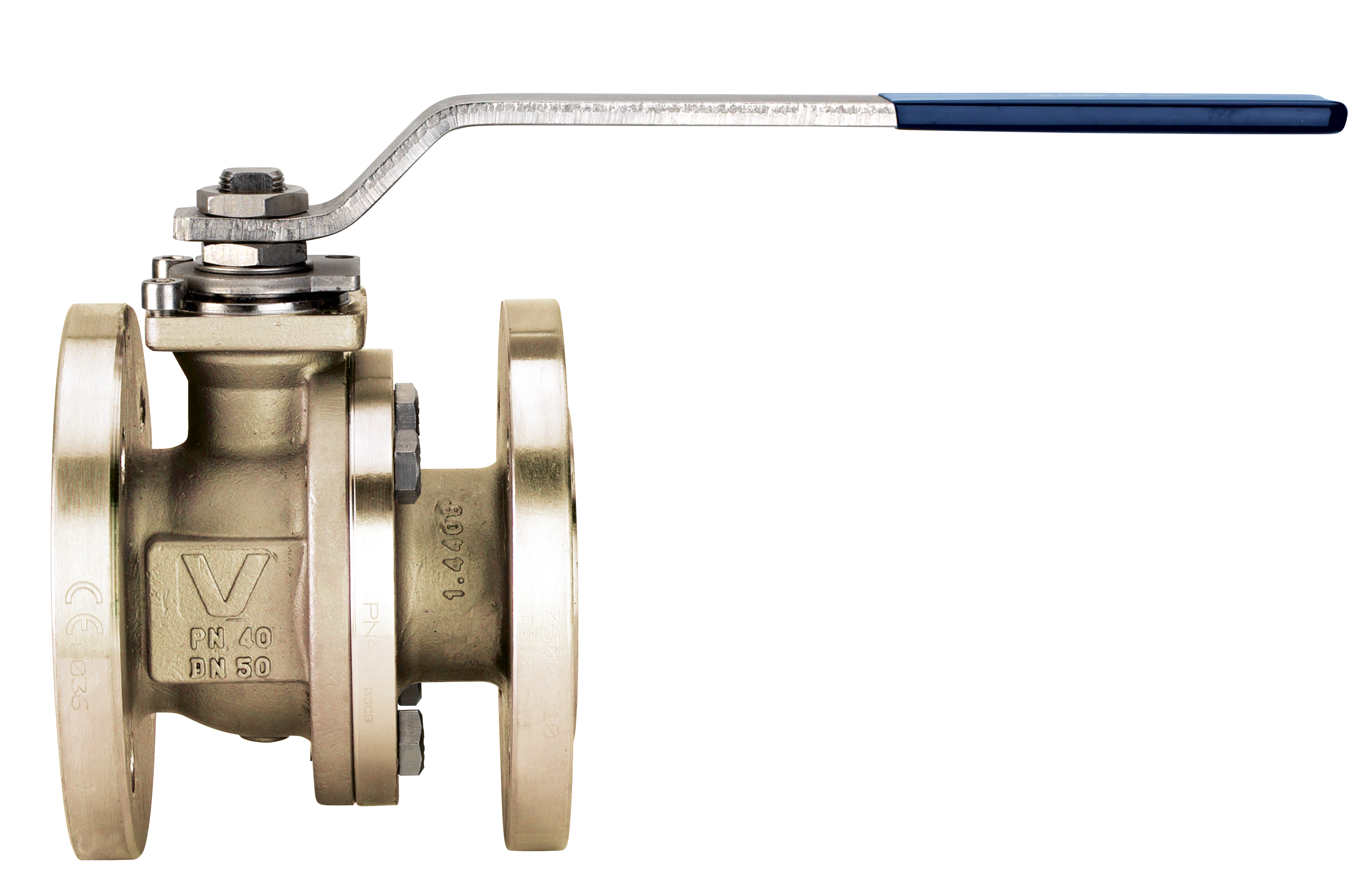

Flanged PN16 zinc-plated/painted (DN>100) carbon steel A216-WCB ball valve, full bore, EN 558 basic series 27 face to face dimension, Fire Safe, Antistatic Device.

Technical specifications

Temperature range: -20° +160°

Vacuum: 10-3 torr.

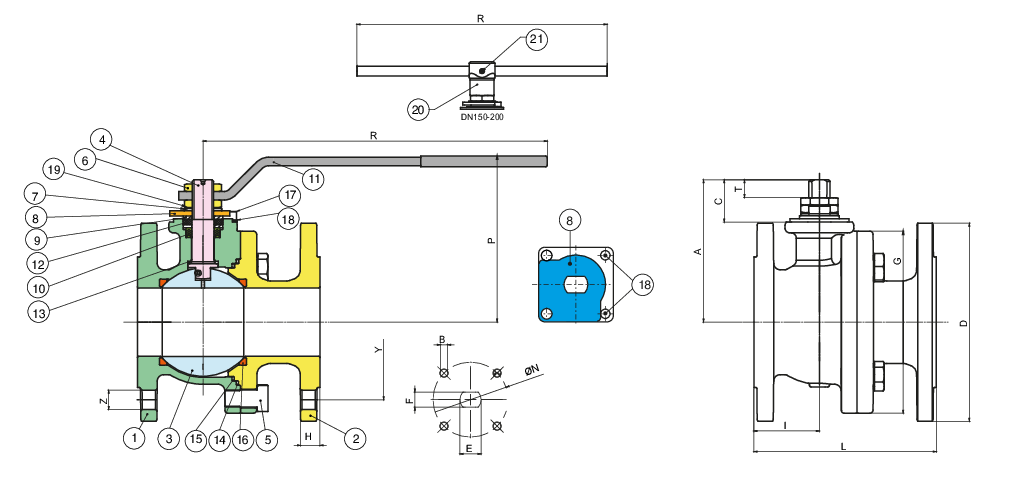

Position Part name Material N.° pieces
1 BODY A352-LCB 1
2 END CONNECTION A352-LCB 1
3 BALL A479-TP304/A351-CF8 1
4 STEM A479-TP304/17-4-PH 1
5 SCREW CARBON STEEL 4-8-12
6 NUT STAINLESS STEEL 1-2
7 SPRING WASHER CARBON STEEL 2
8 90° STOP CARBON STEEL 1
9 PACKING GLAND A182-F316 2
10 STEM SEAT PTFE 1
11 HANDLE CARBON STEEL 1
12 STEM SEAL GRAPHOIL 1
13 O-RING FKM 2
14 THRUST WASHER PTFE 1
15 BODY SEAT GRAPHOIL 1
16 BODY SEAT PTFE 1
17 BALL SEAT PTFE 2
18 SCREW CARBON STEEL 2
19 SCREW CARBON STEEL 2
20 BODY HANDLE DN150-200 EN-GJL 250 1
21 Unscrewing grower A182-F316 1
SIZE DN CODE D Y Z H I L G P R A C T E F ØN B Kv PN Kg
1/2" 15 76000104 95 65 4xØ14 16 49 115 71 88 131 52 19 8 M10 7 42-F04 M5 19,2 40 2,50
3/4" 20 76000105 105 75 4xØ14 18 51 120 73,5 93 131 56 19 8 M10 7 42-F04 M5 35 40 3,20
1" 25 76000106 115 85 4xØ14 18 54 125 90,5 89 174 72,5 27,5 13 M12 8 50-F05 M6 64,5 40 4,50
1"1/4 32 76000107 140 100 4xØ18 18 55 130 97 93 174 76 27,5 13 M12 8 50-F05 M6 103,8 40 5,80
1"1/2 40 76000108 150 110 4xØ18 18 51,5 140 114 133 250 107 30 10 M16 10 50-F05 M6 174 40 8,10
2" 50 76000110 165 125 4xØ18 20 57,5 150 136,5 144 321 122 38,5 18 M20 14 70-F07 M8 301,3 40 11,40
2"1/2 65 76000112 185 145 4xØ18 18 61 170 167,6 154 321 133 39,5 18 M20 14 70-F07 M8 545,7 16 15,40
3" 80 76000114 200 160 8xØ18 20 75,5 180 178,6 173 381 151 43 18 M24 18 102-F10 M10 872,5 16 20,50
4" 100 76000118 220 180 8xØ18 20 80 190 208,6 187 381 165 43 18 M24 18 102-F10 M10 1363,3 16 26,80
5" 125 76000119 250 210 8xØ18 22 149 325 273 209 381 187 43 18 M24 18 102-F10 M10 2360,3 16 50,20
6" 150 76000120 285 240 8xØ22 22 157 350 311 305 700 245 68 41 M42 30 125-F12 M12 3671,1 16 75,70
8" 200 76000121 340 295 12xØ22 24 190 400 402 348 700 288 68 41 M42 30 125-F12 M12 6816,6 16 104,00
10"* 250 76000177 405 355 12xØ26 26 225 450 500 - - 353 81 47 M52 38 140-F14 M16 11170,7 16 180,00
12"* 300 76000178 460 410 12xØ26 28 250 500 560 - - 384 81 47 M52 38 140-F14 M16 16805,6 16 226,00

* TRUNNION supplied without handle

Certifications
TUV SIL 3
FIRE-SAFE Acc. EN ISO 10497/API 607
F.E. TESTED ISO15848-1
Available media and videos
CAT242000 VALPRES
CAT242000 VALPRES
Spare Parts
HANDLES
Code Material Size
RI2018 A 37 15
RI2018 A 37 20
RI2019 A 37 25
RI2019 A 37 32
RI2020 A 37 40
RI2016 A 37 50
RI2016 A 37 65
RI2017 A 37 80
RI2017 A 37 100
RI2017 A 37 125
RI2021 A 37 150
RI2021 A 37 200
SEATS
Code Material Size
RI2322 PTFE 15
RI2323 PTFE 20
RI2324 PTFE 25
RI2325 PTFE 32
RI2326 PTFE 40
RI2327 PTFE 50
RI2646 PTFE 50 SPLIT WAFER
RI2328 PTFE 65
RI2329 PTFE 80
RI2330 PTFE 100
DIN
RI2346 PTFE 100
 ANSI
RI2331 PTFE 125
RI2332 PTFE 150
RI2478 PTFE 200
RI2659 PTFE 250
RI2849 PTFE 300
RI2347 PTFE CARBOGRAFITE - CARBON FILLED PTFE 15
RI2348 PTFE CARBOGRAFITE - CARBON FILLED PTFE 20
RI2349 PTFE CARBOGRAFITE - CARBON FILLED PTFE 25
RI2350 PTFE CARBOGRAFITE - CARBON FILLED PTFE 32
RI2351 PTFE CARBOGRAFITE - CARBON FILLED PTFE 40
RI2352 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
RI2648 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
SPLIT WAFER
RI2353 PTFE CARBOGRAFITE - CARBON FILLED PTFE 65
RI2354 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80
RI2355 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
DIN
RI2356 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
ANSI
RI2357 PTFE CARBOGRAFITE - CARBON FILLED PTFE 125
RI2358 PTFE CARBOGRAFITE - CARBON FILLED PTFE 150
RI2359 PTFE CARBOGRAFITE - CARBON FILLED PTFE 200
RI2373 PTFE CON ANIMA METALLICA - METAL CORE PTFE 15
RI2374 PTFE CON ANIMA METALLICA - METAL CORE PTFE 20
RI2375 PTFE CON ANIMA METALLICA - METAL CORE PTFE 25
RI2376 PTFE CON ANIMA METALLICA - METAL CORE PTFE 32
RI2377 PTFE CON ANIMA METALLICA - METAL CORE PTFE 40
RI2378 PTFE CON ANIMA METALLICA - METAL CORE PTFE 50
RI2649 PTFE CON ANIMA METALLICA - METAL CORE PTFE 50
SPLIT WAFER
RI2379 PTFE CON ANIMA METALLICA - METAL CORE PTFE 65
RI2380 PTFE CON ANIMA METALLICA - METAL CORE PTFE 80
RI2381 PTFE CON ANIMA METALLICA - METAL CORE PTFE 100
DIN
RI2382 PTFE CON ANIMA METALLICA - METAL CORE PTFE 100
ANSI
RI2383 PTFE CON ANIMA METALLICA - METAL CORE PTFE 125
RI2384 PTFE CON ANIMA METALLICA - METAL CORE PTFE 150
RI2385 PTFE CON ANIMA METALLICA - METAL CORE PTFE 200
RI6161 PTFE 100 Din
RI6161 PTFE 100 Ansi
RI6163 PTFE CARICATO VETRO - GLASS FILLED PTFE 100 Din
RI6163 PTFE CARICATO VETRO - GLASS FILLED PTFE 100 Ansi
RI6162 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100 Din
RI6162 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100 Ansi
BALL
Code Material Size
00304000046 AISI 304 15
00305000075 AISI 304 20
00306000038 AISI 304 25
00307000054 AISI 304 32
00308000029 AISI 304 40
00310000028 AISI 304 50
00312000013 AISI 304 65
00314000016 AISI 304 80
00318007004 AISI 304 100DIN
00318007002 AISI 304 100ANSI
00319007006 AISI 304 125
00320007001 AISI 304 150
00321000028 AISI 304 200
00318007001 AISI 316 100DIN
00318007001 AISI 316 100ANSI
00318007002 AISI 304 100DIN
00318007002 AISI 304 100ANSI
00321000026 AISI 304 200
00377000008 AISI 304 250
00378000008 AISI 304 300
00321000025 AISI 316 200
00377000007 AISI 316 250
00378000007 AISI 316 300
STEMS ANTISTATIC DEVICE
Code Material Size
00404000033 AISI 316 15
00404000033 AISI 316 20
00406000020 AISI 316 25
00406000020 AISI 316 32
00412000014 AISI 316 65
STEMS
Code Material Size
00408000022 AISI 316 40
00410000023 AISI 316 50
00414000006 AISI 304 80
00414000006 AISI 304 100
00414000006 AISI 304 125
00420000008* AISI 304 150
00420000008* AISI 304 200
00477000005 17-4-PH 250
00477000005 17-4-PH 300
