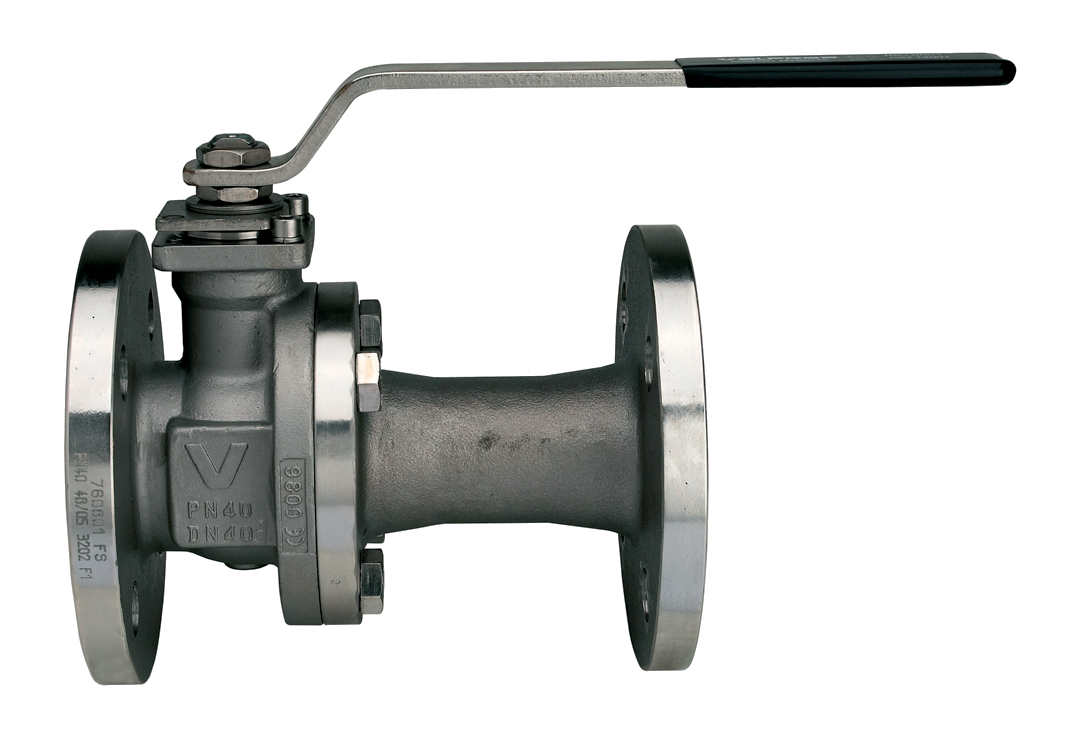

Technical specifications
Drawing
Materials
POSITION PART NAME MATERIAL N.° PIECES
1 BODY 1.4408/A351-CF8M 1
2 END CONNECTION 1.4408/A351-CF8M 1
3 BALL A479-TP316/A351-CF8M 1
4 STEM A479-TP316 1
5 SCREW STAINLESS STEEL 4-8
6 NUT STAINLESS STEEL 2
7 SPRING WASHER STAINLESS STEEL 2
8 90° STOP A182-F316 1
9 PACKING GLAND A182-F316 2
10 STEM SEAT PTFE 1
11 HANDLE A182-F316 1
12 STEM SEAL GRAPHOIL 1
13 O-RING FKM (VITON) 2
14 THRUST WASHER PTFE 1
15 BODY SEAT GRAPHOIL 1
16 BODY SEAT PTFE 1
17 BALL SEAT PTFE 2
18 SCREW STAINLESS STEEL 2
Table
SIZE DN CODE UNITS PER BOX D Y Z H I L G P R A C T E F ØN B KV PN KG
1/2” 15 76080104 - 95 65 4 16 49 130 71 88 131 52 19 8 M10 7 42 M5 19.2 40 3
3/4” 20 76080105 - 105 75 4 18 51.5 150 73.5 93 131 56 19 8 M10 7 42 M5 35 40 3.5
1” 25 76080106 - 115 85 4 18 53 160 90.5 89 174 72.5 27.5 13 M12 8 50 M6 64.5 40 4
1”1/4 32 76080107 - 140 100 4 18 55 180 97 112 174 76 27.5 13 M12 8 50 M6 103.8 40 6.1
1”1/2 40 76080108 - 150 110 4 18 51.5 200 114 133 250 107 30 10 M16 10 50 M6 174 40 10
2” 50 76080110 - 165 125 4 20 57.5 230 136.5 144 321 122 38.5 18 M20 14 70 M8 301.3 40 12.5
2”1/2 65 76080112 - 185 145 4 18 61 290 167.6 154 321 133 39.5 18 M20 14 70 M8 545.7 16 15
3” 80 76080114 - 200 160 8 20 75.5 310 178.6 173 381 151 43 18 M24 18 102 M10 872.5 16 23
4” 100 76080118 - 220 180 8 20 80 350 208.6 187 381 165 43 18 M24 18 102 M10 1363.3 16 31
Notes

Temperature range: -20° +160°

Vacuum: 10-3 torr.

Certifications
T.A. LUFT
SIL 3
FIRE-SAFE Acc. EN ISO 10497/API 607
F.E. TESTED ISO15848-1
ATEX
