SPLIT-BODY BALL VALVES
/
SPLIT-BODY ANSI 300 API608
/
68R115
SPLIT-BODY ANSI 300 API608

68R115

SUPER DUPLEX

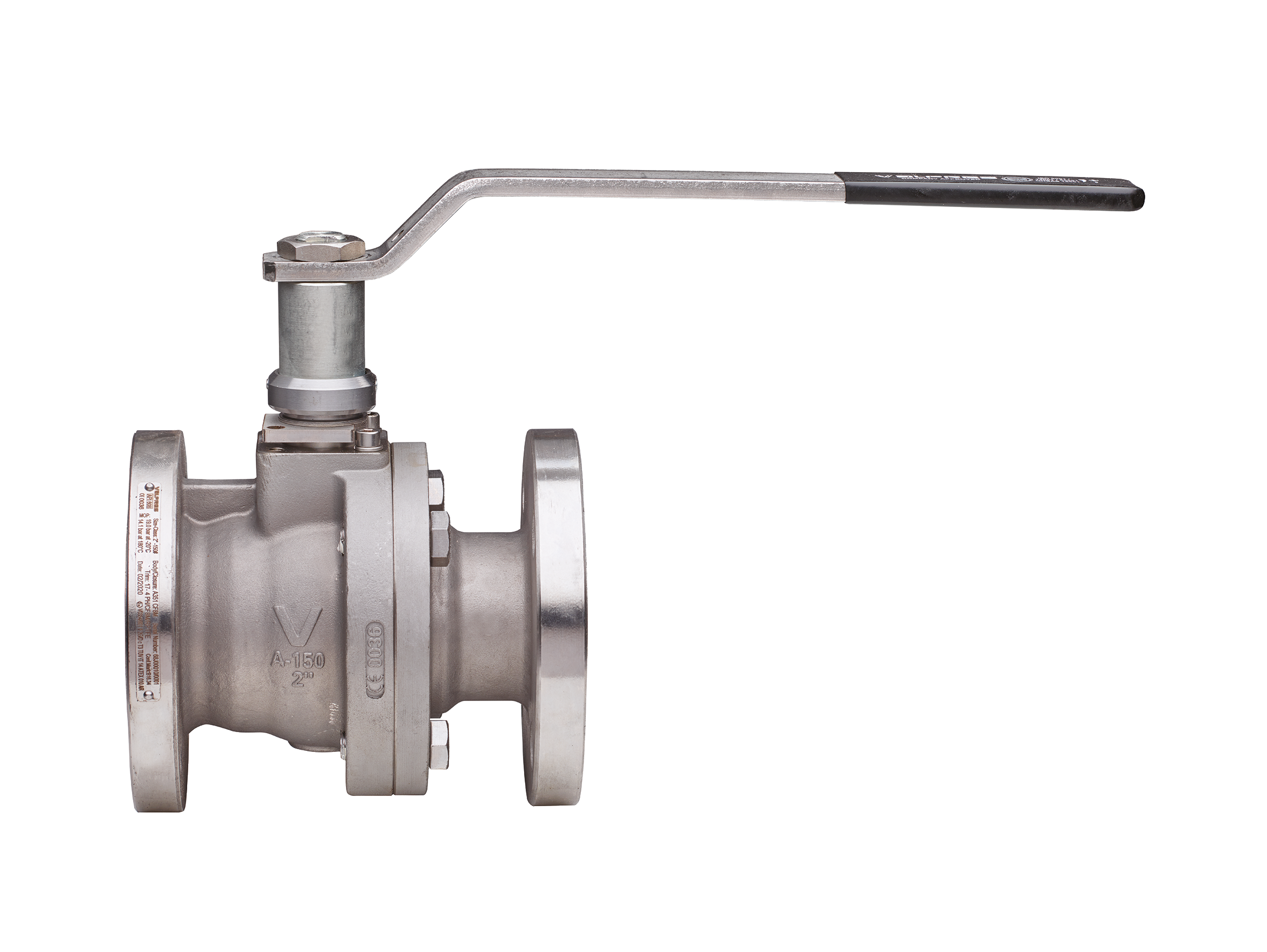

Flanged ANSI 300 API STANDARD 608 super duplex ball valve, full bore, ASME B16.10 face to face dimension, Fire Safe, Antistatic Device.

Technical specifications

Temperature range: -20° +180°

Vacuum: 10-3 torr.

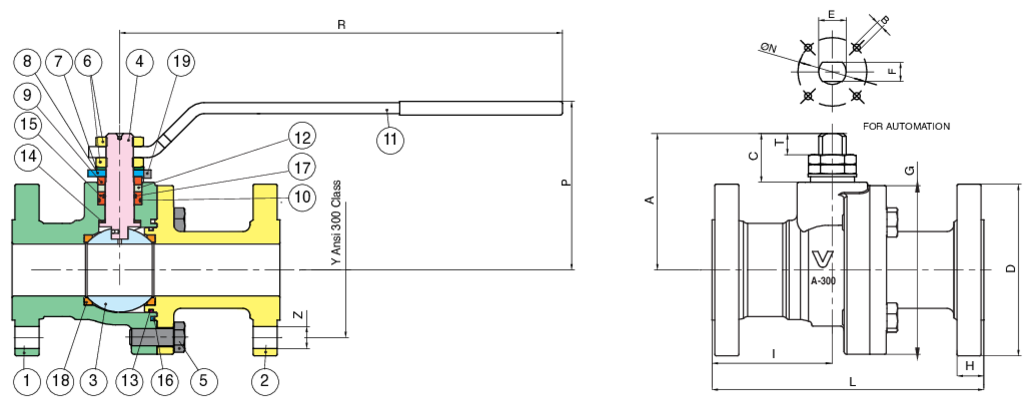

Position Part name Material N.° pieces
1 BODY ASTM A995-GR. 6 1
2 END CONNECTION ASTM A995-GR. 6 1
3 BALL UNS S32760 1
4 STEM UNS S32760 1
5 SCREW A193 B8 CI.2 4-6-8-12
6 NUT STAINLESS STEEL 2
7 SPRING WASHER STAINLESS STEEL 2
8 90° STOP AISI 316 1
9 BUSH A479-TP316L 1
10 O-RING FKM 1
11 HANDLE AISI 316 1
12 STEM SEAL GRAPHITE 1
13 O-RING FKM 1
14 THRUST WASHER RPTFE 1
15 O-RING BUSH UNS S32760 1
16 BODY SEAT GRAFITE 1
17 O-RING FKM 1
18 BALL SEAT RPTFE 2
19 SCREW A2-70 2
SIZE DN CODE D Y Z H I L G P R A C T E F ØN B Kv PN Kg
1/2" 15 68R11504 95 66,7 4xØ16 14,7 62,7 140 82 95 174 54 21,5 6,8 M12 8 42-F04 M5 19,2 50 3,10
3/4" 20 68R11505 115 82,6 4xØ19 16,3 67 152 90 99 174 58 21 6,8 M12 8 42-F04 M5 35 50 4,50
1" 25 68R11506 125 88,9 4xØ19 17,9 70,5 165 105 100 250 74,8 29 9,5 M16 10 50-F05 M6 64,5 50 6,40
1"1/2 40 68R11508 155 114,3 4xØ22 21,1 104 190 128 123 321 99 35,5 15,5 M20 14 50-F05 M6 174 50 11,60
2" 50 68R11510 165 127 8xØ19 23 90 216 140 133 321 109 37 16,5 M20 14 50-F05 M6 301,3 50 14,40
3" 80 68R11514 210 168,3 8xØ22 29 122 282 188 167 381 150 44,5 20,5 M24 18 102-F10 M10 872,5 50 32,00
4" 100 68R11518 255 200 8xØ22 32,2 128 305 235 186 610 167 42 18,5 M24 18 102-F10 M10 1363,3 50 52,40
6"* 150 68R11520 320 269,9 12xØ22 37 200,5 403 322 - - 245 64 37,5 M42 30 125-F12 M12 3671,1 50 109,00

* Gear operator included.

Certifications
TUV SIL 3
FIRE-SAFE Acc. EN ISO 10497/API 607
F.E. TESTED ISO15848-1
Available media and videos
CAT242000 VALPRES
CAT242000 VALPRES
Spare Parts
SEATS
Code Material Size
RI6115 PTFE CARBOGRAFITE - CARBON FILLED PTFE 15
RI6116 PTFE CARBOGRAFITE - CARBON FILLED PTFE 20
RI6117 PTFE CARBOGRAFITE - CARBON FILLED PTFE 25
RI6118 PTFE CARBOGRAFITE - CARBON FILLED PTFE 40
RI6119 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
RI6120 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80
RI6121 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
RI6122 PTFE CARBOGRAFITE - CARBON FILLED PTFE 150
RI6119 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80x50
RI6120 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100x80
RI6121 PTFE CARBOGRAFITE - CARBON FILLED PTFE 150x100
