SPLIT-BODY BALL VALVES
/
SPLIT-BODY ANSI 150 API608
/
68R015
SPLIT-BODY ANSI 150 API608

68R015

SUPER DUPLEX

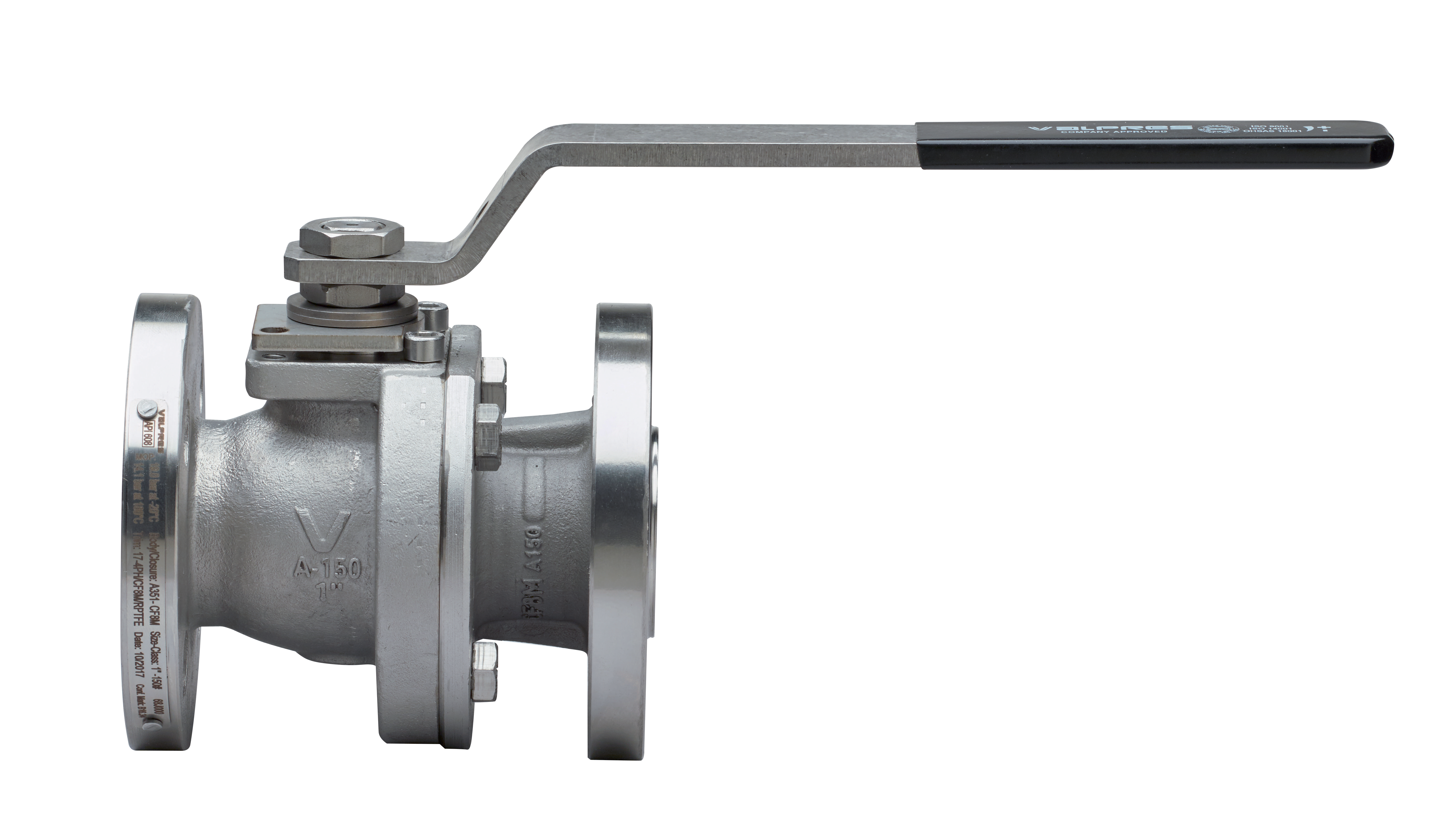

Flanged ANSI 150 API STANDARD 608 super duplex ball valve, full bore, ASME B16.10 face to face dimension, Fire Safe, Antistatic Device.

Technical specifications

Temperature range: -20° +180°

Vacuum: 10-3 torr.

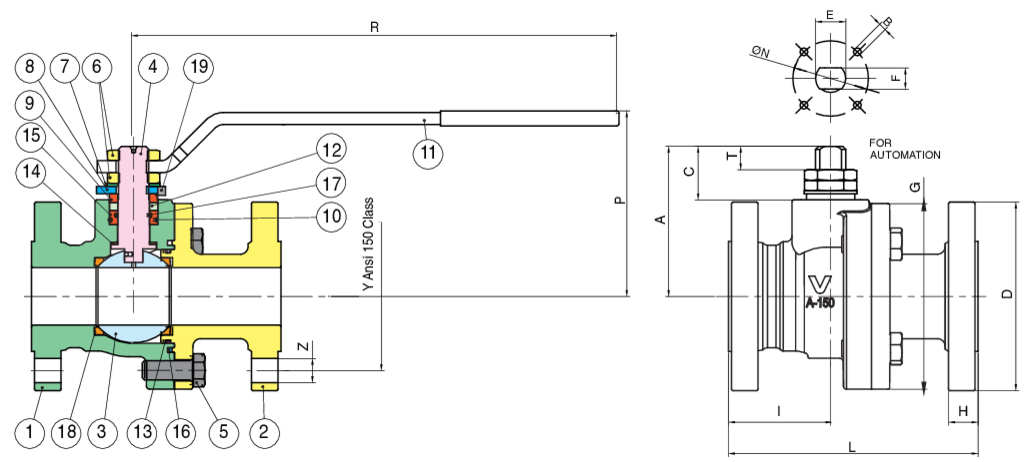

Position Part name Material N.° pieces
1 BODY ASTM A995-GR. 6 1
2 END CONNECTION ASTM A995-GR. 6 1
3 BALL UNS S32760 1
4 STEM UNS S32760 1
5 SCREW A193 B8 CI.2 4-8-12
6 NUT STAINLESS STEEL 2
7 SPRING WASHER STAINLESS STEEL 2
8 90° STOP AISI 316 1
9 BUSH A479-TP316L 1
10 O-RING FKM 1
11 HANDLE AISI 316 1
12 STEM SEAL GRAPHITE 1
13 O-RING FKM 1
14 THRUST WASHER RPTFE 1
15 O-RING BUSH UNS S32760 1
16 BODY SEAT GRAPHITE 1
17 O-RING FKM 1
18 BALL SEAT RPTFE 2
19 SCREW A2-70 2
SIZE DN CODE D Y Z H I L G P R A C T E F ØN B Kv PN Kg
1/2" 15 68R01504 90 60,3 4xØ16 11,6 45,5 108 82 95 174 54 21,5 6,8 M12 8 42-F04 M5 19,2 20 2,40
3/4" 20 68R01505 100 69,9 4xØ16 13,5 48,5 117 90 99 174 58 21 6,8 M12 8 42-F04 M5 35 20 3,30
1" 25 68R01506 110 79,4 4xØ16 14,7 53 127 105 100 250 74,7 29 9,5 M16 10 50-F05 M6 64,5 20 4,81
1"1/2 40 68R01508 125 98,4 4xØ16 18 94,5 165 123 123 321 100 35,5 15,5 M20 14 50-F05 M6 174 20 8,70
2" 50 68R01510 150 120,5 4xØ19 19,5 76 178 140 133 321 108,5 36,5 16,5 M20 14 50-F05 M6 301,3 20 11,90
3" 80 68R01514 190 152,4 4xØ19 24,3 82 203 188 167 381 149,5 44,5 20,5 M24 18 70-F07 M8 872,5 20 24,10
4" 100 68R01518 230 190,5 8xØ19 24,3 90 229 235 186 381 167 42,5 18,5 M24 18 102-F10 M10 1363,3 20 38,50
6" 150 68R01520 280 241,3 8xØ22 26 241 394 315 - - 245 68 41 M42 30 125-F12 M12 3671,1 20 85,80

*Gear operator included

Certifications
TUV SIL 3
FIRE-SAFE Acc. EN ISO 10497/API 607
F.E. TESTED ISO15848-1
Available media and videos
CAT242000 VALPRES
CAT242000 VALPRES
Spare Parts
SEATS
Code Material Size
RI6115 PTFE CARBOGRAFITE - CARBON FILLED PTFE 15
RI6116 PTFE CARBOGRAFITE - CARBON FILLED PTFE 20
RI6117 PTFE CARBOGRAFITE - CARBON FILLED PTFE 25
RI6118 PTFE CARBOGRAFITE - CARBON FILLED PTFE 40
RI6119 PTFE CARBOGRAFITE - CARBON FILLED PTFE 50
RI6120 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80
RI6121 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100
RI6122 PTFE CARBOGRAFITE - CARBON FILLED PTFE 150
RI6119 PTFE CARBOGRAFITE - CARBON FILLED PTFE 80x50
RI6120 PTFE CARBOGRAFITE - CARBON FILLED PTFE 100x80
RI6121 PTFE CARBOGRAFITE - CARBON FILLED PTFE 150x100
