Full bore painted flanged ball valve, PN16 in cast iron ENGJL-250, according to EN 558 basic serie 14 (DN 200 basic serie 27).
EN-GJL 250 PN6 - DN40 to DN80
Technical specifications

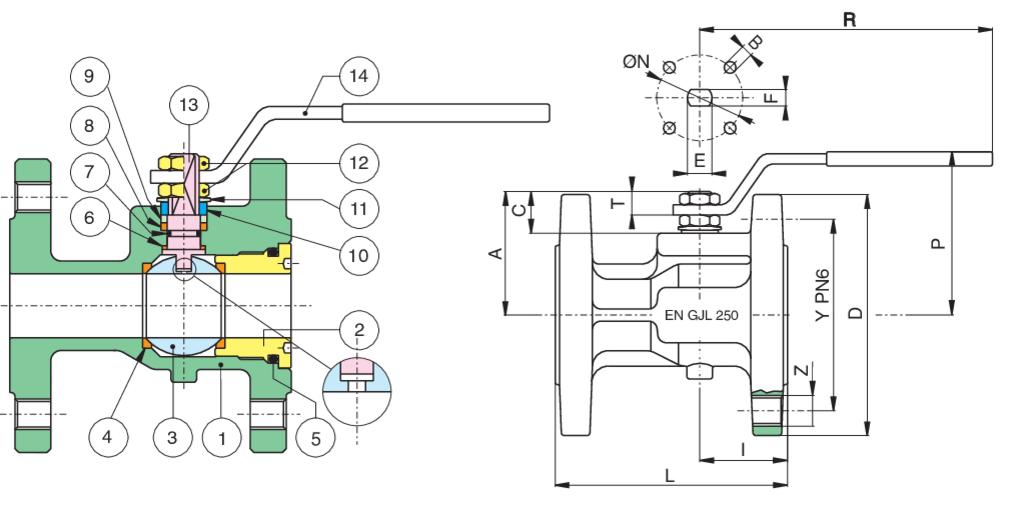

Drawing
Materials
POSITION
PART NAME
MATERIAL
N.° PIECES
1
BODY
EN-GJL 250
1
2
END CONNECTION
ASTM A105
1
3
BALL
A351-CF8
1
4
BALL SEAT
PTFE
2
5
O-RING
NBR
1
6
THRUST WASHER
PTFE
1
7
O-RING
NBR
1
8
STEM SEAT
PTFE
1
9
PACKING GLAND
CARBON STEEL
1
10
END STOP
INOX AISI 430 (DN15-DN50) CARBON STEEL (DN65-DN200)
2-1
11
SPRING WASHER
CARBON STEEL
2
12
NUT
CARBON STEEL
2
13
STEM
A479-TP304
1
14
HANDLE
CARBON STEEL
1
15
HANDLE DN 150-200
CARBON STEEL
1
16
SCREW
CARBON STEEL
1
17
SCREW
CARBON STEEL
8
18
BODY HANDLE DN 150-200
EN-GJL 250
1
19
Unscrewing grower
A182-F316
1
Table
SIZE
DN
CODE
UNITS PER BOX
D
Y
Z
I
L
R
P
A
C
T
E
F
ØN
B
KV
PN
KG
1"1/2
40
73000208
-
150
110
4
49
140
250
103
78
24
13
16
10
-
-
174
16
6.1
2"
50
73000210
-
165
125
4
52
150
250
110
85
24
13
16
10
-
-
301.3
16
7.8
2"1/2
65
73000212
-
185
145
4
65
170
321
126
103
28
18
20
14
-
-
545.7
16
11.4
3"
80
73000214
-
200
160
8
66
180
321
137
114
28
18
20
14
70
M8
872.5
16
14.1
Notes
Temperature range: -10° +120°
Vacuum: 10-3 torr.
Available spare parts pagg.
