600105

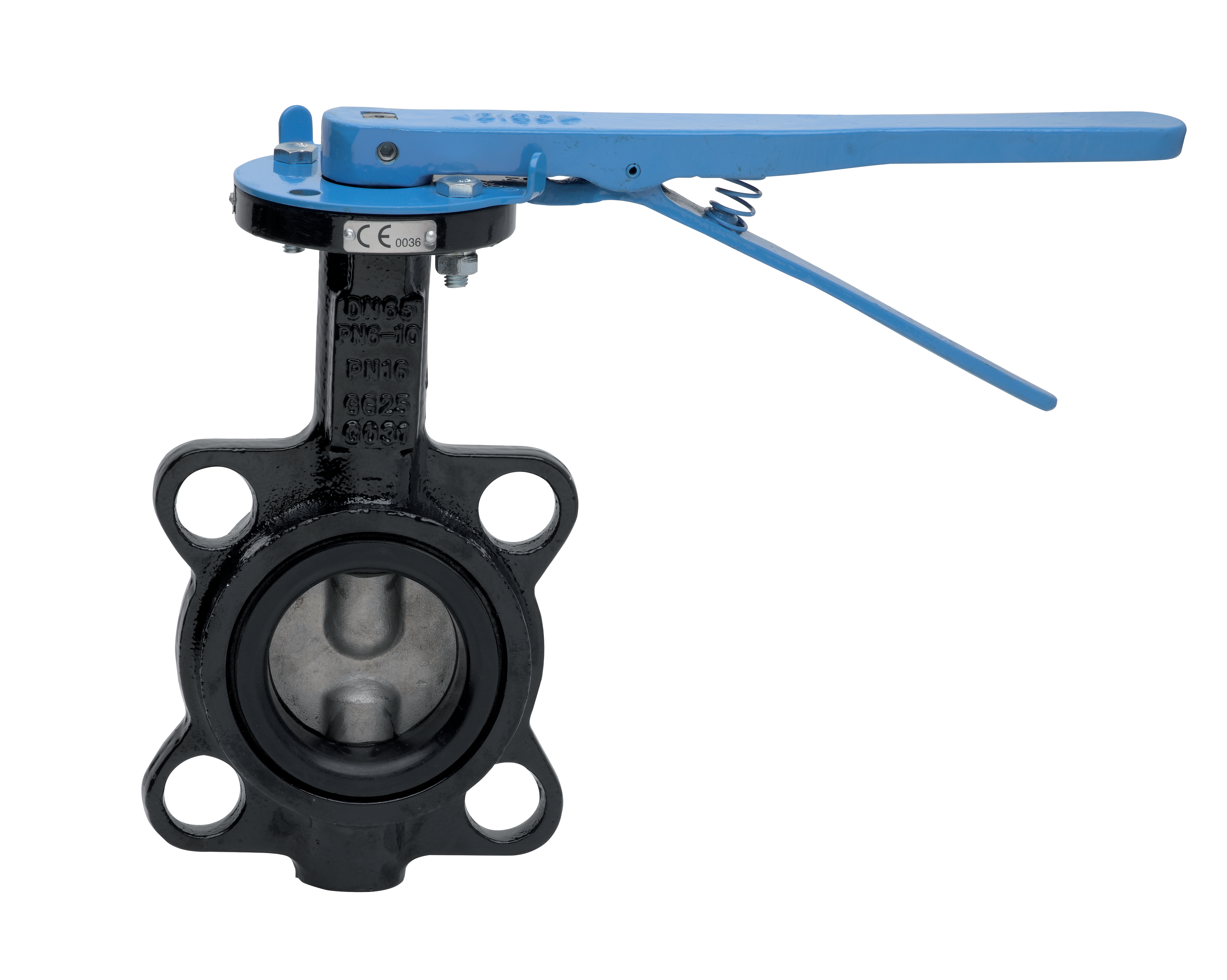

Butterfly valve WAFER type PN16, body in cast iron GJL250 + Epoxy painting, EPDM seat, face to face according to UNI EN 558 basic series 20.

Technical specifications

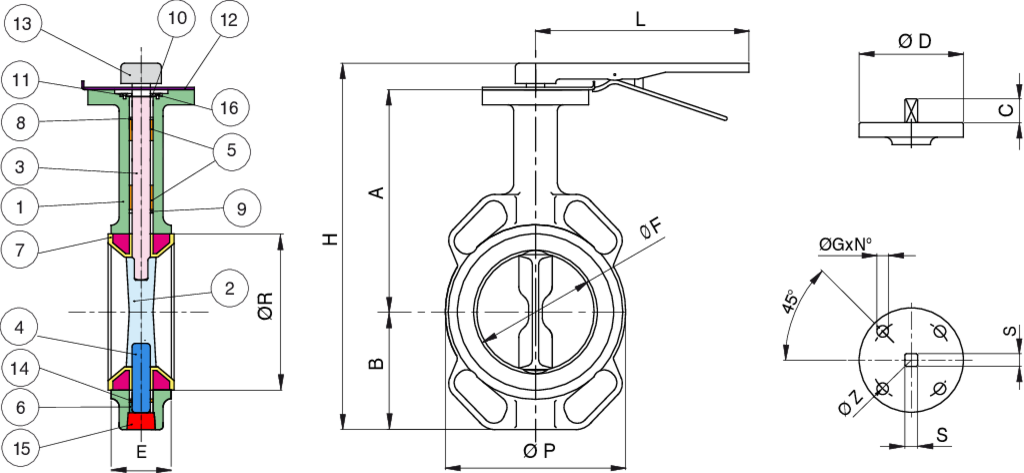

Drawing

Materials

Position	Part name	Material	N.° pieces
1	BODY	EN-GJL 250	1
2	DISC	A351-CF8M	1
3	STEM	SS416	1
4	STEM	SS416	1
5	STEM SEAT	PTFE	1
6	STEM SEAT	PTFE	1
7	SEAT	EPDM	1
8	O-RING	EPDM	1
9	O-RING	EPDM	1
10	WASHER	CARBON STEEL	1
11	CIRCLIP	SPRING STEEL	1
12	RETAINER	CARBON STEEL	1
13	LEVER	EN-GJL 250	1
14	O-RING	EPDM	1
15	CAP	CARBON STEEL	1
16	SCREW	CARBON STEEL	2

Table

Size	DN	Code	Units per Box	H	A	B	L	ØF	ØP	ØR	E	ØD	C	ØG	N°	ØZ	S	Kv	PN	Kg
1 1/4"	32	60010507	-	190	112	58	162	35	85	56	33	90	22	7	4	50	11	51	PN16 - ANSI 150	2.04
1 1/2"	40	60010508	-	204	112	70	162	41	95	68	33	90	22	7	4	50	11	68	PN16 - ANSI 150	2.3
2"	50	60010510	-	236.1	142.7	71.4	267	52.25	100	73.3	43	90	22	7	4	50	11	99	PN16 - ANSI 150	3.24
2 1/2"	65	60010512	-	255.2	155.4	77.8	267	64.05	120	86	46	90	22	7	4	50	11	169	PN16 - ANSI 150	3.88
3"	80	60010514	-	272.8	161.8	89	267	78.65	127	100.9	46	90	22	7	4	50	11	260	PN16 - ANSI 150	4.18
4"	100	60010518	-	302	178	102	267	104.15	161	132	52	90	22	10	4	70	14	516	PN16 - ANSI 150	5.36
5"	125	60010519	-	335.5	190.5	123	267	123.35	190	156	56	90	22	10	4	70	14	879	PN16 - ANSI 150	7.1
6"	150	60010520	-	365.2	205.2	138	267	155.85	215	185.4	56	90	22	10	4	70	14	1358	PN16 - ANSI 150	8.28
8"	200	60010521	-	439.5	237	168	358	202.55	268	235.2	60	150	34.5	12	4	102	17	2697	PN16 - ANSI 150	16
10"	250	60010577	-	509.8	268.3	207	358	250.55	325	289.4	68	150	34.5	12	4	102	22	4592	PN16 - ANSI 150	21.82
12"	300	60010578	-	586.5	308.5	243.5	358	301.65	375	341.2	78	150	34.5	14	4	125	27	7095	PN16 - ANSI 150	42.2
14"	350	60010597	-	-	368	259	-	341.7	436	-	78	175	65	18	4	140	Ø28	10249	16	54.5
16"	400	60010598	-	-	400	309	-	397.5	488	-	102	175	75	18	4	140	Ø38	14094	16	87
18"	450	60010545	-	-	422	327	-	448.4	536	-	114	175	75	18	4	140	Ø37,9	18666	16	101.5
20"	500	60010599	-	-	480	361	-	499	593	-	127	210	90	23	4	165	Ø45	24001	16	149
24"	600	60010560	-	-	562	459	-	600.1	820	-	151	210	100	23	4	165	Ø55,6	37080	16	240

Notes

Temperature range: -10° +120°

Gear operator included.

Gear operator on request.

Version available PN10-ANSI 150.
