707600

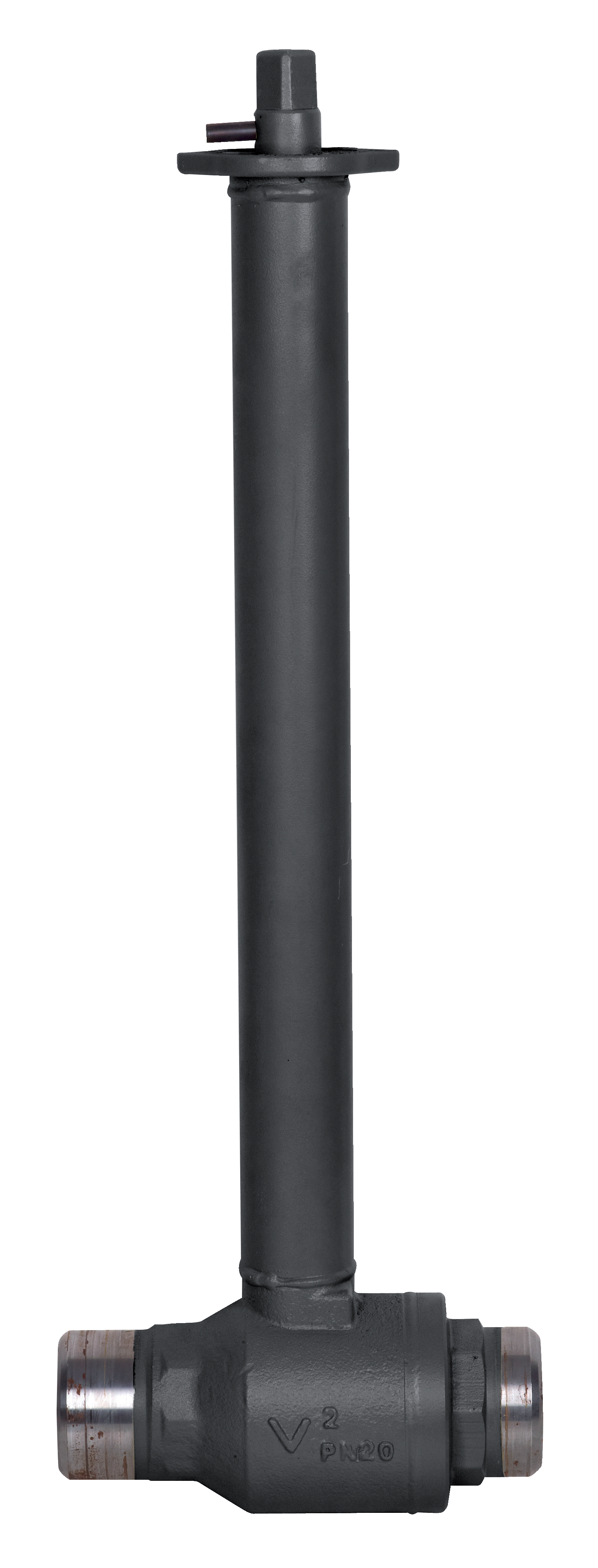

Fully welded painted ASTM A105/WCB reduced bore floating ball valve for natural gas, elongated stem for installation underground level, BW ends, in accordance to UNI 9734 and EN 13774.

Technical specifications

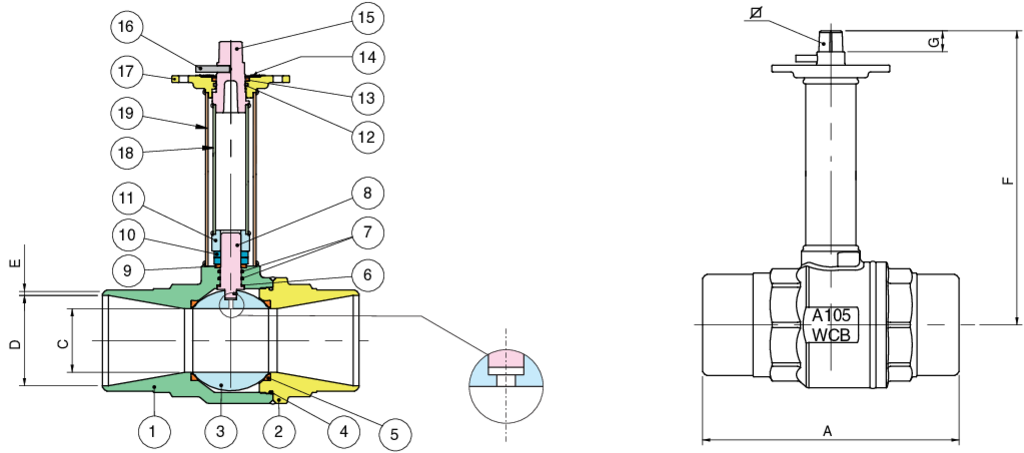

Drawing

Materials

POSITION	PART NAME	MATERIAL	N.° PIECES
1	BODY	ASTM A105-WCB	1
2	END CONNECTION	ASTM A105-WCB	1
3	BALL	A479-TP304	1
4	O-RING	NBR	1
5	BALL SEAT	PTFE	2
6	SEAT	PTFE	1
7	O-RING	FKM (VITON)	2
8	STEM	A479-TP304	1
9	PACKING GLAND	POM	1
10	NUT	CARBON STEEL	2
11	STEM TRASMISSION	ASTM A105	1
12	O-RING	FKM (VITON)	1
13	SEAT	PTFE	1
14	LABEL	PLACA DE IDENTIFICACION	1
15	OPERATION SQUARE	A216-WCB	1
16	OPEN/CLOSED INDICATION	CARBON STEEL	1
17	CAP	A216-WCB	1
18	EXTERNAL STEM EXTENSION	CARBON STEEL	1
19	INTERNAL STEM EXTENSION	CARBON STEEL	1

Table

CODE	SIZE	DN	A	C	D	E	F	G	KV	PN	KG
70760018	4” X 3”	100	305	76	107.9	4.8	-	25	872.5	20	22.5
70760019	5” X 4”	125	380	102	131.5	5.4	400	25	1363.3	20	36
70760020	6” X 4”	150	457	102	159.3	5.1	600	25	1363.3	20	48.5
70760021	8” X 6”	200	521	150	209.1	7.5	800	30	3671.1	20	90

Notes

Temperature range: -10° +60°

Connection for gear operator.

Accessories available at page 130.

Epoxy painting 100 micron thick.
