BALL VALVES FOR UNDERGROUND PIPINGS
/
INTER-GAS
/
706000
INTER-GAS

706000

WITH LEVER

Fully welded floating ball valve for natural gas service, according to UNI 9734 and EN 13774, elongated stem for installation underground level, in ASTM A105, BW ends with handle.

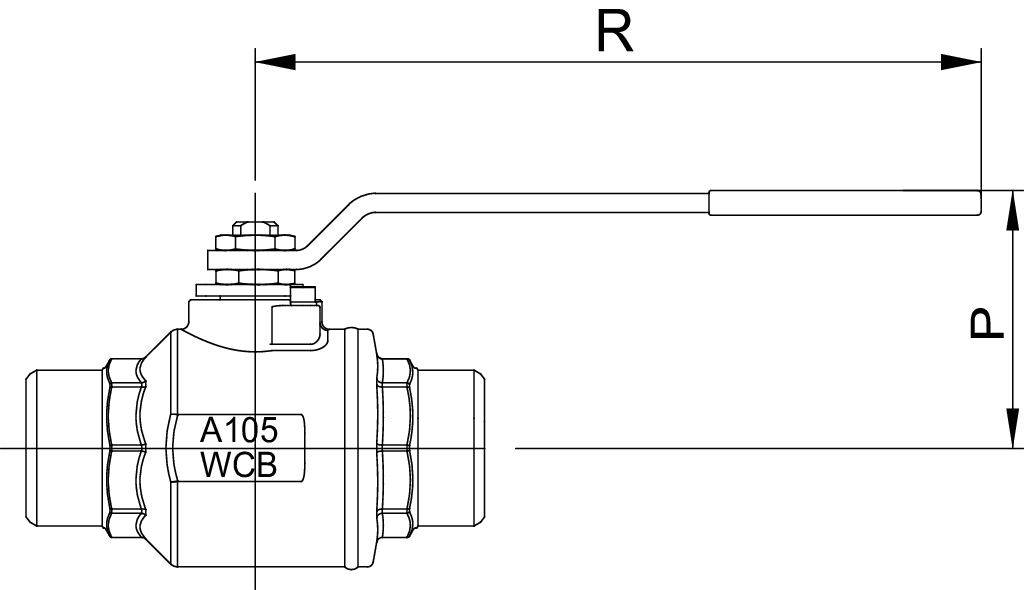

Technical specifications
SIZE DN CODE P R
1" 25 70600006 83,5 174
1"1/4 32 70600007 86 174
1"1/2 40 70600008 106 250
2" 50 70600010 116,5 250
2"1/2 65 70600012 135,5 381
3" 80 70600014 146,5 381
4" 100 70600018 165 381

Epoxy painting 100 micron thick.

Available media and videos
CAT242000 VALPRES
CAT242000 VALPRES
Spare Parts
BUTTERFLY HANDLES
Code Material Size
RI2028 AISI 430 1/8"
RI2028 AISI 430 1/4"
RI2028 AISI 430 3/8"
RI2028 AISI 430 1/2"
SEATS
Code Material Size
RI2054 PTFE VETRO - GLASS FILLED PTFE 1/8"
RI2054 PTFE VETRO - GLASS FILLED PTFE 1/4"
RI2054 PTFE VETRO - GLASS FILLED PTFE 3/8"
RI2055 PTFE VETRO - GLASS FILLED PTFE 1/2"
RI2056 PTFE VETRO - GLASS FILLED PTFE 3/4"
RI2057 PTFE VETRO - GLASS FILLED PTFE 1"
RI2058 PTFE VETRO - GLASS FILLED PTFE 1"1/4
RI2059 PTFE VETRO - GLASS FILLED PTFE 1"1/2
RI2060 PTFE VETRO - GLASS FILLED PTFE 2"
RI2175 PTFE VETRO - GLASS FILLED PTFE 2"1/2
RI2177 PTFE VETRO - GLASS FILLED PTFE 3"
RI2034 PTFE VETRO - GLASS FILLED PTFE 4"
RI2148 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1/8"
RI2148 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1/4"
RI2148 PTFE CARBOGRAFITE - CARBON FILLED PTFE 3/8"
RI2149 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1/2"
RI2150 PTFE CARBOGRAFITE - CARBON FILLED PTFE 3/4"
RI2151 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1"
RI2152 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1"1/4
RI2153 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1"1/2
RI2154 PTFE CARBOGRAFITE - CARBON FILLED PTFE 2"
RI2155 PTFE CARBOGRAFITE - CARBON FILLED PTFE 2"1/2
RI2156 PTFE CARBOGRAFITE - CARBON FILLED PTFE 3"
RI2157 PTFE CARBOGRAFITE - CARBON FILLED PTFE 4"
STEMS ANTISTATIC DEVICE
Code Material Size
00401000003 AISI 316 1/4"
00401000003 AISI 316 1/8"
00401000003 AISI 316 1/2"
00401000003 AISI 316 3/8"
00405000029 AISI 316 3/4"
00406000011 AISI 316 1"
00406000011 AISI 316 1"1/4
00408000010 AISI 316 1"1/2
00408000010 AISI 316 2"
00412000021 AISI 316 2"1/ 2
00412000021 AISI 316 3"
00418000006 AISI 316 4"
