ACCESSORIES

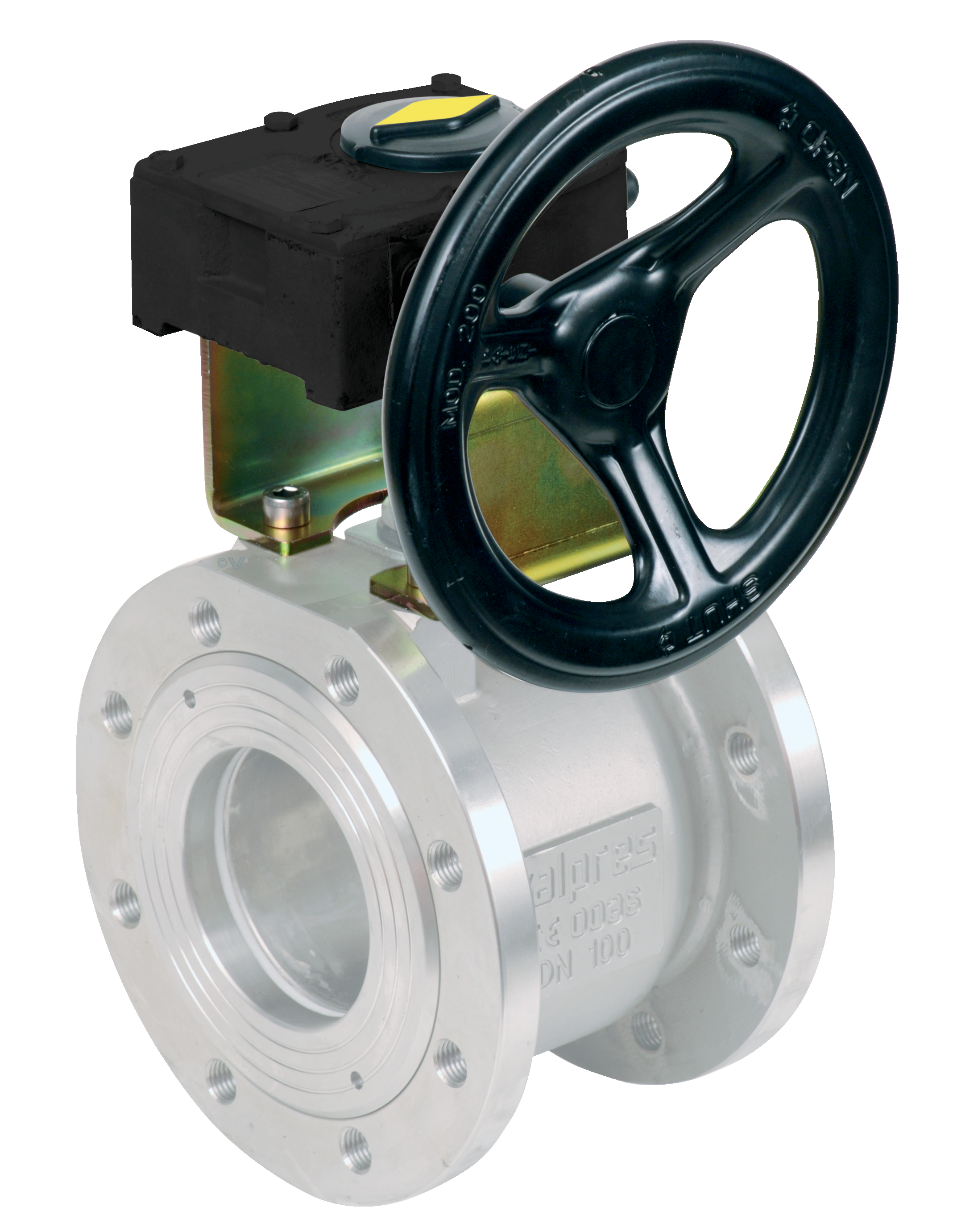

GEAR OPERATOR, UNDECLUTCHABLE (VERTICAL WHEEL)

Technical specifications

Position	Part name	Material
1	BODY	Ghisa protetto da verniciatura-Cast iron Painted
2	COVER	Acciaio sinterizzato - Sintered steel
3	TORQUE	Da 250 Nm a 1000 Nm - From 250 Nm to 1000 Nm
4	STROKE	90°± 5°
5	WORKING TEMPERATURE	-20°C +80°C

CODE	Ø	DN	SERIE-SERIES
RI2726	600	250-300	76
RI6347	400	150-200	72-73-76
RI6342	200	80-100-125	76
RI6344	150	50÷65	76
RI6345	200	80	72-73
RI6346	200	100÷125	72-73
RI6337	400	150	72-76
RI6413	150	65	72-73

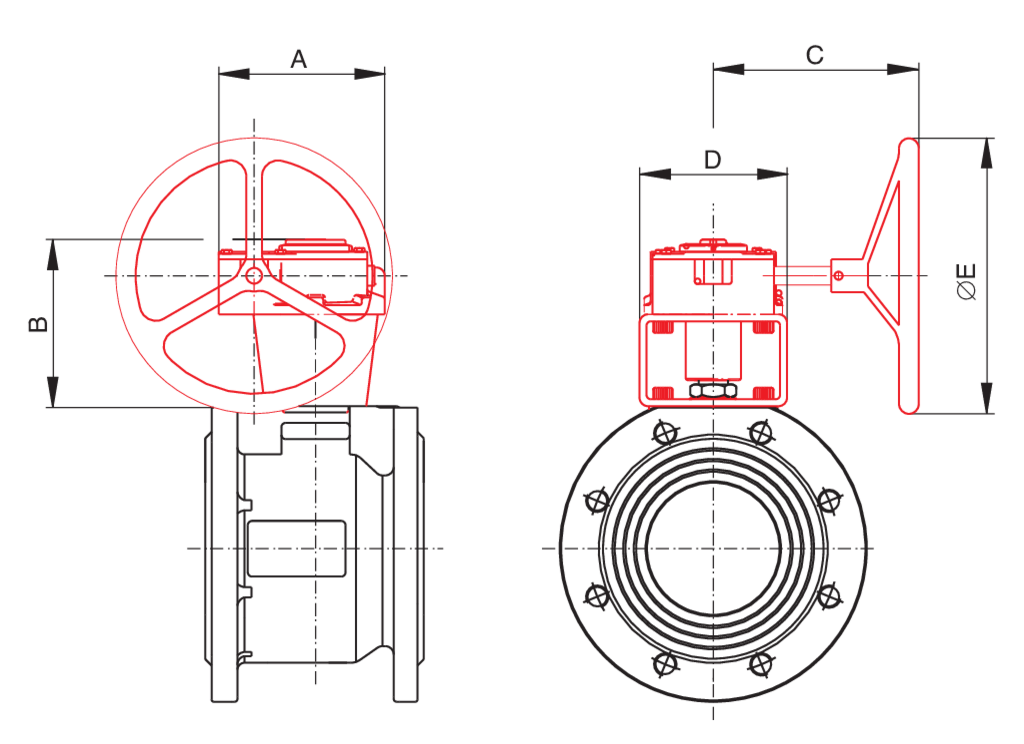

SIZE VALVE SERIES 72-73	A mm	B mm	C mm	D mm	ØE mm
DN65÷125	142	147	169	116	200
DN150-200	180	161	223	150	400

SIZE VALVE SERIES 76	A mm	B mm	C mm	D mm	ØE mm
DN50-65	107	118	154	88	160
DN80	107	138	154	88	160
DN100-125	142	147	169	116	200
DN150-200	180	161	223	150	400
