INOX-VAL 2 PIECE BALL VALVES

709H00

MONOBLOCCO

Barstock ball valve monobloc type class 800 in stainless steel A479-316, full bore, F/F threading, high cyclicity, double seat with V-Pack, elastomer and ISO 5211 pad.

Technical specifications

Temperature range: -40° +180°
Vacuum: 10^-2 torr.

Position	Part name	Material	N.° pieces
1	BODY	ASTM A479 316/316L	1
2	END CONNECTION	ASTM A479 316/316L	1
3	BALL SEAT	PTFE+ CARBOGRAFITE	1
4	BALL	ASTM A479 316/316L	1
5	ANTISTATIC STEM	ASTM A479 316/316L	1
6	BODY SEAT	PTFE+CARBOGRAFITE	2
7	STEM SEAT	PTFE+CARBOGRAFITE	1
8	PACKING GLAND	AISI 316	1
9	END STOP	AISI 316	1
10	SPRING WASHER	51CrV4+Z/P	1
11	NUT	6S+Z/P	2
12	HANDLE	A37+Z/P	1
13	ANTIFRICTION RING	PTFE+CARBOGRAFITE	2

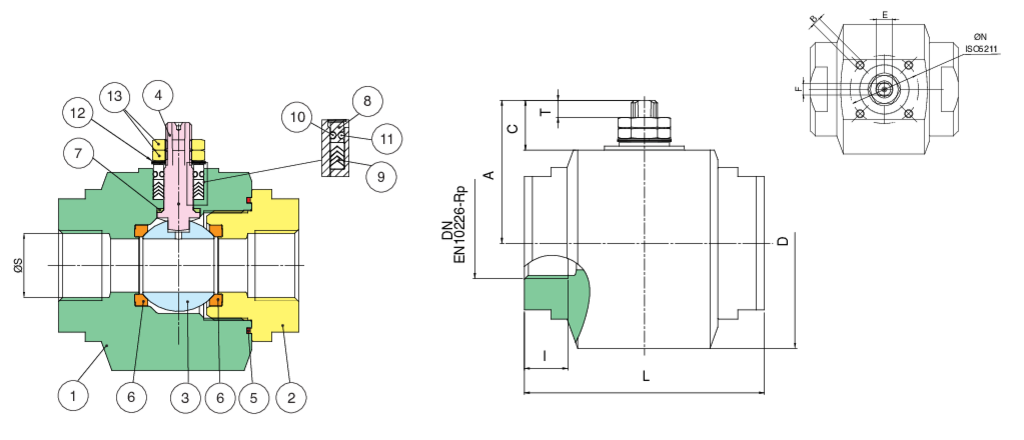

SIZE	DN	CODE	A	C	T	D	ØS	I	L	E	F	ØN	B	kv	PN	Kg
1/2"	15	709H0004	50	18,8	6,5	73	14	15	75	10	7	42	M5	17	138	1,85
3/4"	20	709H0005	54	18,8	6,5	79	20	16,3	90	10	7	42	M5	35	138	2,75
1"	25	709H0006	72	30,5	10,5	94	25	19,1	105	16	10	50	M6	64,5	138	4,65
1"1/4	32	709H0007	75,5	30,5	10,5	99	30	21,4	120	16	10	50	M6	103,8	138	5,25
1"1/2	40	709H0008	91,2	34,7	14,5	128	38	21,4	135	20	14	70	M8	174	138	9,65
2"	50	709H0010	101	35	14,5	146	49	25,7	155	20	14	70	M8	291	138	13,8

Versions available: BW, SW and long BW connection.

Available for HYDROGEN degreased.

Certifications

FIRESAFE ATEX BS6755-2

F.E. TESTED ISO15848-1

Available media and videos

CAT242000 VALPRES

Spare Parts

BUTTERFLY HANDLES

Code	Material	Size
RI2028	AISI 430	1/8"
RI2028	AISI 430	1/4"
RI2028	AISI 430	3/8"
RI2028	AISI 430	1/2"

SEATS

Code	Material	Size
RI2054	PTFE VETRO - GLASS FILLED PTFE	1/8"
RI2054	PTFE VETRO - GLASS FILLED PTFE	1/4"
RI2054	PTFE VETRO - GLASS FILLED PTFE	3/8"
RI2055	PTFE VETRO - GLASS FILLED PTFE	1/2"
RI2056	PTFE VETRO - GLASS FILLED PTFE	3/4"
RI2057	PTFE VETRO - GLASS FILLED PTFE	1"
RI2058	PTFE VETRO - GLASS FILLED PTFE	1"1/4
RI2059	PTFE VETRO - GLASS FILLED PTFE	1"1/2
RI2060	PTFE VETRO - GLASS FILLED PTFE	2"
RI2175	PTFE VETRO - GLASS FILLED PTFE	2"1/2
RI2177	PTFE VETRO - GLASS FILLED PTFE	3"
RI2034	PTFE VETRO - GLASS FILLED PTFE	4"
RI2148	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1/8"
RI2148	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1/4"
RI2148	PTFE CARBOGRAFITE - CARBON FILLED PTFE	3/8"
RI2149	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1/2"
RI2150	PTFE CARBOGRAFITE - CARBON FILLED PTFE	3/4"
RI2151	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1"
RI2152	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1"1/4
RI2153	PTFE CARBOGRAFITE - CARBON FILLED PTFE	1"1/2
RI2154	PTFE CARBOGRAFITE - CARBON FILLED PTFE	2"
RI2155	PTFE CARBOGRAFITE - CARBON FILLED PTFE	2"1/2
RI2156	PTFE CARBOGRAFITE - CARBON FILLED PTFE	3"
RI2157	PTFE CARBOGRAFITE - CARBON FILLED PTFE	4"

STEMS ANTISTATIC DEVICE

Code	Material	Size
00401000003	AISI 316	1/4"
00401000003	AISI 316	1/8"
00401000003	AISI 316	1/2"
00401000003	AISI 316	3/8"
00405000029	AISI 316	3/4"
00406000011	AISI 316	1"
00406000011	AISI 316	1"1/4
00408000010	AISI 316	1"1/2
00408000010	AISI 316	2"
00412000021	AISI 316	2"1/ 2
00412000021	AISI 316	3"
00418000006	AISI 316	4"
