INOX-VAL 2 PIECE BALL VALVES
/
702000
INOX-VAL 2 PIECE BALL VALVES

702000

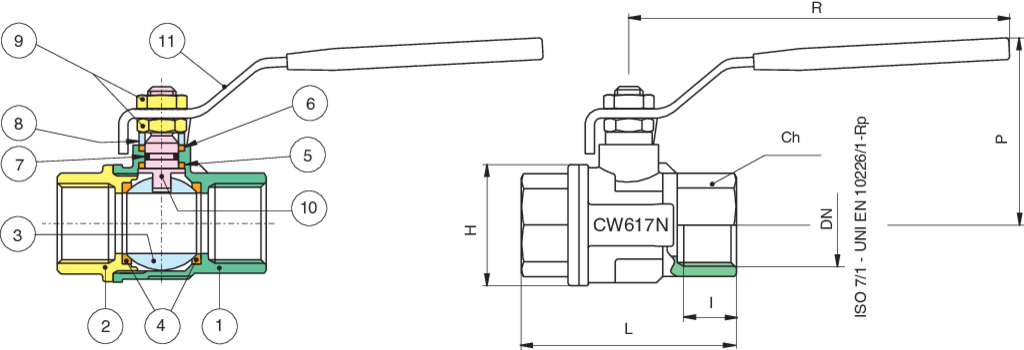

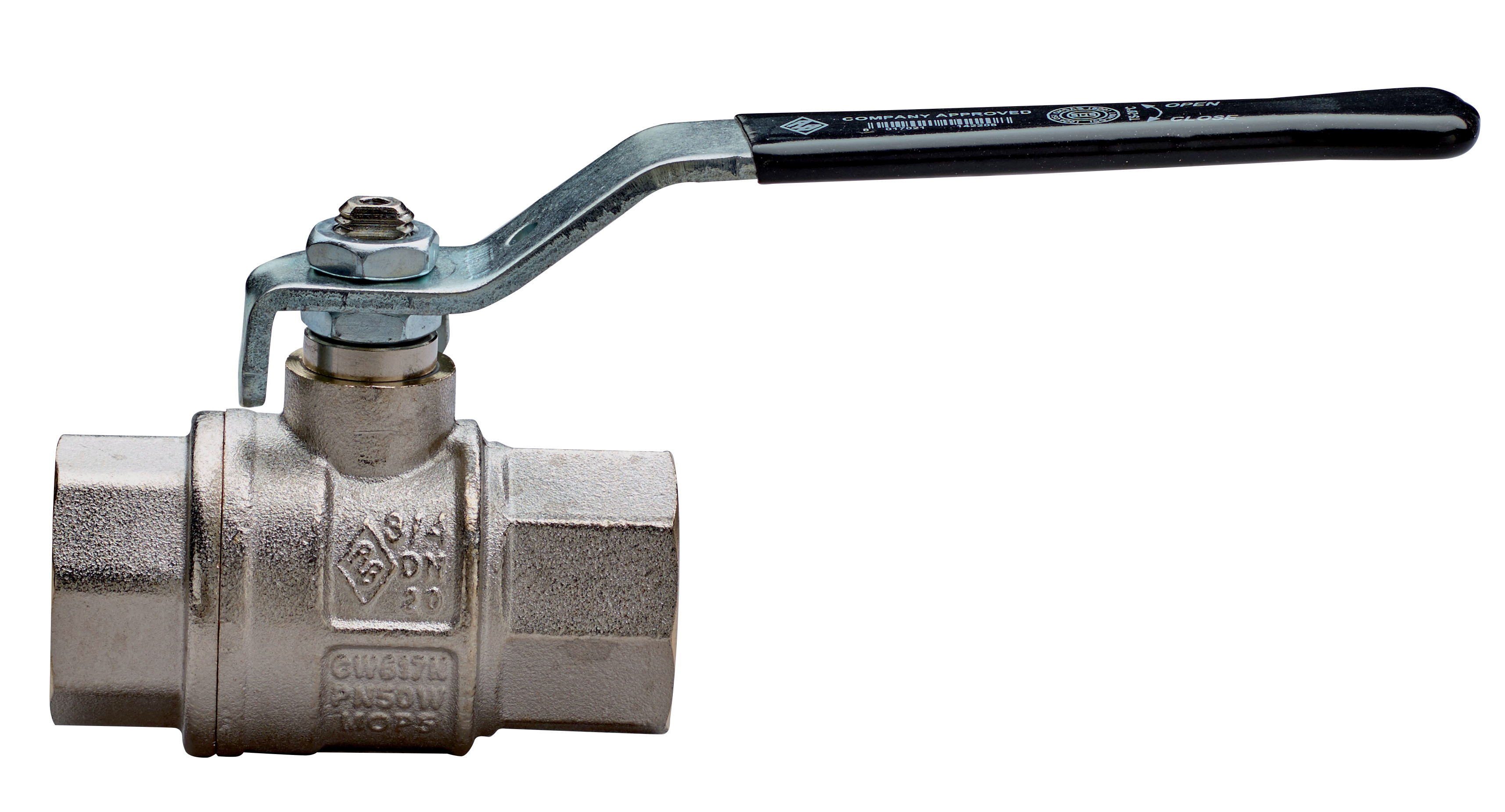

Full bore brass ball valve with stainless steel AISI 316 ball, F/F threading.
Technical specifications

Temperature range: -20° +160°

Position Part name Material N.° pieces
1 BODY CW617N UNI EN 12420 1
2 END CONNECTION CW617N UNI EN 12420 1
3 BALL A479-TP316/A351-CF8M 1
4 BALL SEAT PTFE 2
5 THRUST WASHER PTFE 1
6 STEM SEAT PTFE 1
7 O-RING NBR 1
8 PACKING GLAND CW614N UNI EN 12164 1
9 NUT CARBON STEEL 2
10 STEM CW614N UNI EN 12164 1
11 HANDLE CARBON STEEL 1
SIZE DN CODE BOX I L H Ch R P Kv PN Kg
1/4" 8 70200002 15 11 51,5 23 20 96 42 5,4 64 0,15
3/8" 10 70200003 15 11,4 51,5 23 20 96 42 6 64 0,14
1/2" 15 70200004 30 15 62 33 25 96 46 16,3 64 0,22
3/4" 20 70200005 25 16,3 69 39 31 121 58 29,5 50 0,36
1" 25 70200006 15 19,1 83 49 38 121 62 43 50 0,55
1"1/4 32 70200007 10 21,4 96 59 48 151 76 89 50 0,99
1"1/2 40 70200008 6 21,4 108 73 54 151 82 230 40 1,49
2" 50 70200010 4 25,7 127,5 86 67 160 95 265 40 2,10
2"1/2 65 70200012 2 30,2 152 111 90 206 123 540 25 3,92
3" 80 70200014 4 33,3 177 136 105 206 133 873 25 6,25
4" 100 70200018 2 39,3 214 166 130 261 165 1390 25 10,95
Available media and videos
CAT242000 VALPRES
CAT242000 VALPRES
Spare Parts
BUTTERFLY HANDLES
Code Material Size
RI2028 AISI 430 1/8"
RI2028 AISI 430 1/4"
RI2028 AISI 430 3/8"
RI2028 AISI 430 1/2"
SEATS
Code Material Size
RI2054 PTFE VETRO - GLASS FILLED PTFE 1/8"
RI2054 PTFE VETRO - GLASS FILLED PTFE 1/4"
RI2054 PTFE VETRO - GLASS FILLED PTFE 3/8"
RI2055 PTFE VETRO - GLASS FILLED PTFE 1/2"
RI2056 PTFE VETRO - GLASS FILLED PTFE 3/4"
RI2057 PTFE VETRO - GLASS FILLED PTFE 1"
RI2058 PTFE VETRO - GLASS FILLED PTFE 1"1/4
RI2059 PTFE VETRO - GLASS FILLED PTFE 1"1/2
RI2060 PTFE VETRO - GLASS FILLED PTFE 2"
RI2175 PTFE VETRO - GLASS FILLED PTFE 2"1/2
RI2177 PTFE VETRO - GLASS FILLED PTFE 3"
RI2034 PTFE VETRO - GLASS FILLED PTFE 4"
RI2148 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1/8"
RI2148 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1/4"
RI2148 PTFE CARBOGRAFITE - CARBON FILLED PTFE 3/8"
RI2149 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1/2"
RI2150 PTFE CARBOGRAFITE - CARBON FILLED PTFE 3/4"
RI2151 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1"
RI2152 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1"1/4
RI2153 PTFE CARBOGRAFITE - CARBON FILLED PTFE 1"1/2
RI2154 PTFE CARBOGRAFITE - CARBON FILLED PTFE 2"
RI2155 PTFE CARBOGRAFITE - CARBON FILLED PTFE 2"1/2
RI2156 PTFE CARBOGRAFITE - CARBON FILLED PTFE 3"
RI2157 PTFE CARBOGRAFITE - CARBON FILLED PTFE 4"
STEMS ANTISTATIC DEVICE
Code Material Size
00401000003 AISI 316 1/4"
00401000003 AISI 316 1/8"
00401000003 AISI 316 1/2"
00401000003 AISI 316 3/8"
00405000029 AISI 316 3/4"
00406000011 AISI 316 1"
00406000011 AISI 316 1"1/4
00408000010 AISI 316 1"1/2
00408000010 AISI 316 2"
00412000021 AISI 316 2"1/ 2
00412000021 AISI 316 3"
00418000006 AISI 316 4"
