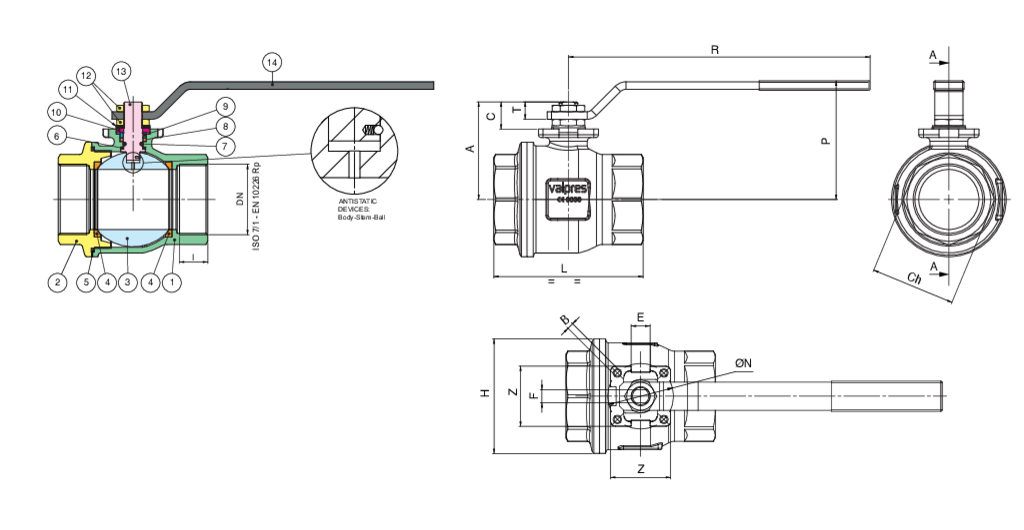

Position | Part name | Material | N.° pieces |
---|---|---|---|
1 | BODY | A351-CF8M | 1 |
2 | END CONNECTION | A351-CF8M | 1 |
3 | BALL | A479-TP316/A351-CF8M | 1 |
4 | BALL SEAT | PTFE CARBOGRAFITE - CARBON FILLED PTFE | 2 |
5 | BODY SEAT | PTFE CARBOGRAFITE - CARBON FILLED PTFE | 1 |
6 | THRUST WASHER | PTFE CARBOGRAFITE - CARBON FILLED PTFE | 1 |
7 | O-RING | FKM (VITON) | 1 |
8 | STEM SEAT | PTFE CARBOGRAFITE - CARBON FILLED PTFE | 1 |
9 | PACKING GLAND | INOX AISI 303 (1/8”-2”) - A37 Z/P (2’’1/2-4’’) | 1 |
10 | END STOP | INOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4") | 1 |
11 | NUT | 50CRV4 Z/P (2''1/2-4'') | 2 |
12 | SPRING WASHER | A2-70 (1/8'' - 2") / 6S Z/P (2"1/2-4") | 2 |
13 | STEM | A479-TP316 | 1 |
14 | HANDLE | INOX AISI 430 (1/8”-2”) - A37 Z/P (2"1/2-4") | 1 |
SIZE | DN | CODE | BOX | I | L | H | Ch | R | P | A | C | E | F | ØN ISO 5211 | B | Z | Kv | PN | Kg | T |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/8" | 6 | 70006101 | 10 | 7,4 | 55 | 30 | ES.22 | 110 | 50 | 35 | 13,5 | 8 | 5 | 36 | 5,5 | 36 | 5 | 140 | 0,29 | 9 |
1/4" | 8 | 70006102 | 10 | 11 | 55 | 30 | ES.22 | 110 | 50 | 35 | 13,5 | 8 | 5 | 36 | 5,5 | 36 | 5,5 | 140 | 0,27 | 9 |
3/8" | 10 | 70006103 | 10 | 11,4 | 55 | 30 | ES.22 | 110 | 50 | 35 | 13,5 | 8 | 5 | 36 | 5,5 | 36 | 8,5 | 140 | 0,26 | 9 |
1/2" | 15 | 70006104 | 10 | 15 | 66 | 36 | ES.27 | 110 | 53 | 38 | 13,5 | 8 | 5 | 36 | 5,5 | 36 | 19,2 | 140 | 0,35 | 9 |
3/4" | 20 | 70006105 | 5 | 16,3 | 79 | 45 | ES.32 | 131 | 68 | 51 | 15 | 10 | 7 | 42 | 5,5 | 42 | 35 | 105 | 0,65 | 10 |
1" | 25 | 70006106 | 6 | 19,1 | 93 | 54 | OT.41 | 174 | 79 | 60 | 19,5 | 12 | 8 | 42 | 5,5 | 42 | 64,5 | 105 | 1,02 | 12,5 |
1"1/4 | 32 | 70006107 | 2 | 21,4 | 100 | 64 | OT.50 | 174 | 83 | 64,5 | 19,5 | 12 | 8 | 42 | 5,5 | 42 | 103,8 | 64 | 1,40 | 12,5 |
1"1/2 | 40 | 70006108 | 2 | 21,4 | 110 | 80 | OT.55 | 250 | 100 | 79 | 24 | 16 | 10 | 50 | 6,5 | 50 | 174 | 64 | 2,35 | 16,5 |
2" | 50 | 70006110 | 2 | 25,7 | 131 | 95 | OT.70 | 250 | 107 | 86 | 24 | 16 | 10 | 50 | 6,5 | 50 | 301,3 | 64 | 3,54 | 16,5 |
2"1/2 | 65 | 70006112 | 1 | 30,2 | 159 | 122 | OT.90 | 321 | 126 | 104 | 28,5 | 20 | 14 | 70 | M8 | 64 | 545,7 | 25 | 6,95 | 18,5 |
3" | 80 | 70006114 | 1 | 33,3 | 185 | 144 | OT.105 | 321 | 137 | 114 | 28 | 20 | 14 | 70 | M8 | 64 | 872,5 | 25 | 10,53 | 18 |
4" | 100 | 70006118 | 1 | 39,3 | 222 | 177 | OT.130 | 381 | 156 | 137 | 34,5 | 24 | 18 | 102 | M10 | 92 | 1363,3 | 25 | 18,70 | 22 |
