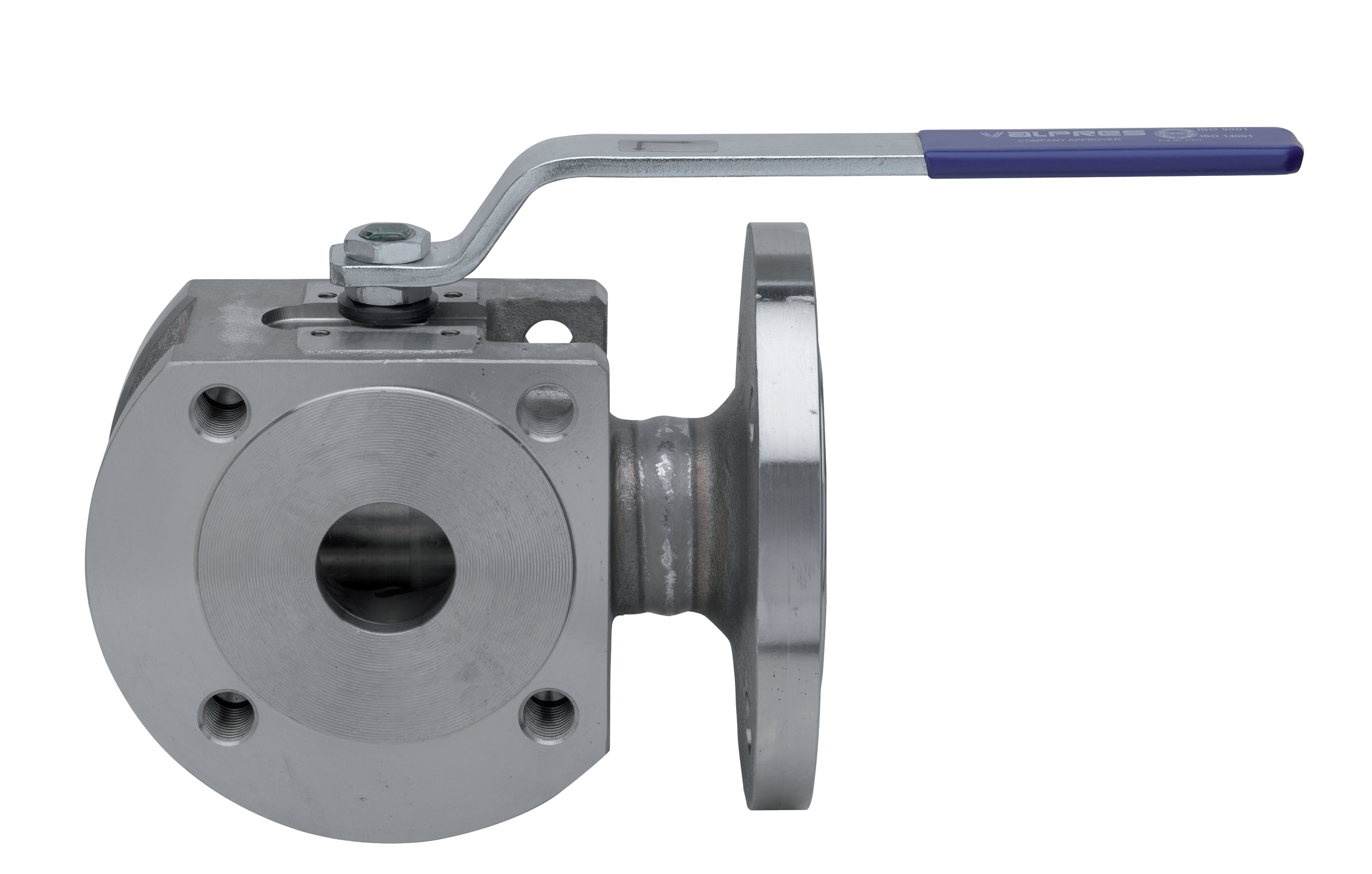

Stainless steel temperature range: -20° +160°
Vacuum: 10-3 torr.
| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | A479-TP316 | 1 |
| 2 | END CONNECTION | A479-TP316 | 1 |
| 3 | BALL | A351-CF8M/A479-TP316 | 1 |
| 4 | BALL SEAT | PTFE | 2 |
| 5 | O-RING | FKM | 1 |
| 6 | THRUST WASHER | PTFE | 1 |
| 7 | O-RING | FKM | 1 |
| 8 | STEM SEAT | PTFE | 1 |
| 9 | PACKING GLAND | CARBON STEEL | 1 |
| 10 | END STOP | INOX AISI 430 (DN15-DN50) CARBON STEEL (DN65-DN150) | 2-1 |
| 11 | SPRING WASHER | CARBON STEEL | 2 |
| 12 | NUT | CARBON STEEL | 2 |
| 13 | STEM | A479-TP316 | 1 |
| 14 | HANDLE | CARBON STEEL | 1 |
| 15 | HANDLE DN 150 | CARBON STEEL | 1 |
| 16 | SCREW | CARBON STEEL | 1 |
| 17 | SCREW | CARBON STEEL | 8 |
| 18 | BODY HANDLE DN150 | EN-GJL 250 | 1 |
| SIZE | DN | CODE | X | Y | Z | I | L | R | P | A | C | G | M | D | S | E | F | ØN | B | Kv(L) | PN | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 77600304 | 89 | 65 | 4xM12 | 20 | 40 | 131,5 | 64,5 | 47 | 15,5 | 95 | 4xØ14 | 10 | 76 | 10 | 7 | 32 | 4xM5 | 2,8 | 16 | 2,23 |
| 3/4" | 20 | 77600305 | 99 | 75 | 4xM12 | 20 | 40 | 131,5 | 67 | 49,5 | 13,5 | 105 | 4xØ14 | 15 | 82 | 10 | 7 | 32 | 4xM5 | 5,2 | 16 | 2,86 |
| 1" | 25 | 77600306 | 109 | 85 | 4xM12 | 23 | 46 | 174,5 | 79 | 59 | 18 | 115 | 4xØ14 | 20 | 86 | 12 | 8 | 42 | 4xM5 | 9,2 | 16 | 3,89 |
| 1"1/4 | 32 | 77600307 | 130 | 100 | 4xM16 | 29 | 58 | 250,5 | 84 | 64 | 15,5 | 140 | 4xØ18 | 25 | 105 | 12 | 8 | 42 | 4xM5 | 14,4 | 16 | 6,21 |
| 1"1/2 | 40 | 77600308 | 140 | 110 | 4xM16 | 35,5 | 71 | 250,5 | 102,5 | 78 | 24,5 | 150 | 4xØ18 | 32 | 110 | 16 | 10 | 50 | 4xM6 | 25,9 | 16 | 8,50 |
| 2" | 50 | 77600310 | 160 | 125 | 4xM16 | 41 | 82 | 321,5 | 109 | 85 | 25 | 165 | 4xØ18 | 40 | 120 | 16 | 10 | 50 | 4xM16 | 40,4 | 16 | 12,27 |
| 2"1/2 | 65 | 77600312 | 180 | 145 | 4xM16 | 53 | 106 | 321,5 | 128 | 104,5 | 28 | 185 | 4xØ18 | 50,2 | 125 | 20 | 14 | 70 | 4xM8 | 63,2 | 16 | 19,10 |
| 3" | 80 | 77600314 | 200 | 160 | 8xM16 | 61 | 122 | 381,5 | 136,5 | 113 | 28 | 200 | 8xØ18 | 64 | 150 | 20 | 14 | 70 | 4xM8 | 115,8 | 16 | 24,34 |
| 4" | 100 | 77600318 | 220 | 180 | 8xM16 | 76 | 152 | 381,5 | 155,5 | 136 | 34,5 | 220 | 8xØ18 | 76 | 159 | 24 | 18 | 102 | 4xM10 | 163,2 | 16 | 38,45 |
| 5" | 125 | 77600319 | 250 | 210 | 8xM16 | 98 | 196 | 381,5 | 178,5 | 159 | 34,5 | 250 | 8xØ18 | 100 | 190 | 24 | 18 | 102 | 4xM10 | 282,6 | 16 | 63,00 |
| 6" | 150 | 77600320 | 306 | 240 | 8xM20 | 116 | 242 | 700 | 252 | 201 | 49 | 285 | 8xØ22 | 125 | 210 | 42 | 30 | 125 | 4xM12 | 441,6 | 16 | 108,00 |
| Code | Material | Size |
|---|---|---|
| RI2180 | AISI 316 | 15 |
| RI2180 | AISI 316 | 20 |
| RI2181 | AISI 316 | 25 |
| RI2181 | AISI 316 | 32 |
| RI2182 | AISI 316 | 40 |
| RI2182 | AISI 316 | 50 |
| RI2183 | AISI 316 | 65 |
| RI2183 | AISI 316 | 80 |
| RI2184 | AISI 316 | 100 |
| RI2184 | AISI 316 | 125 |
| RI2021 | A 37 | 150 |
| RI2021 | A 37 | 200 |
